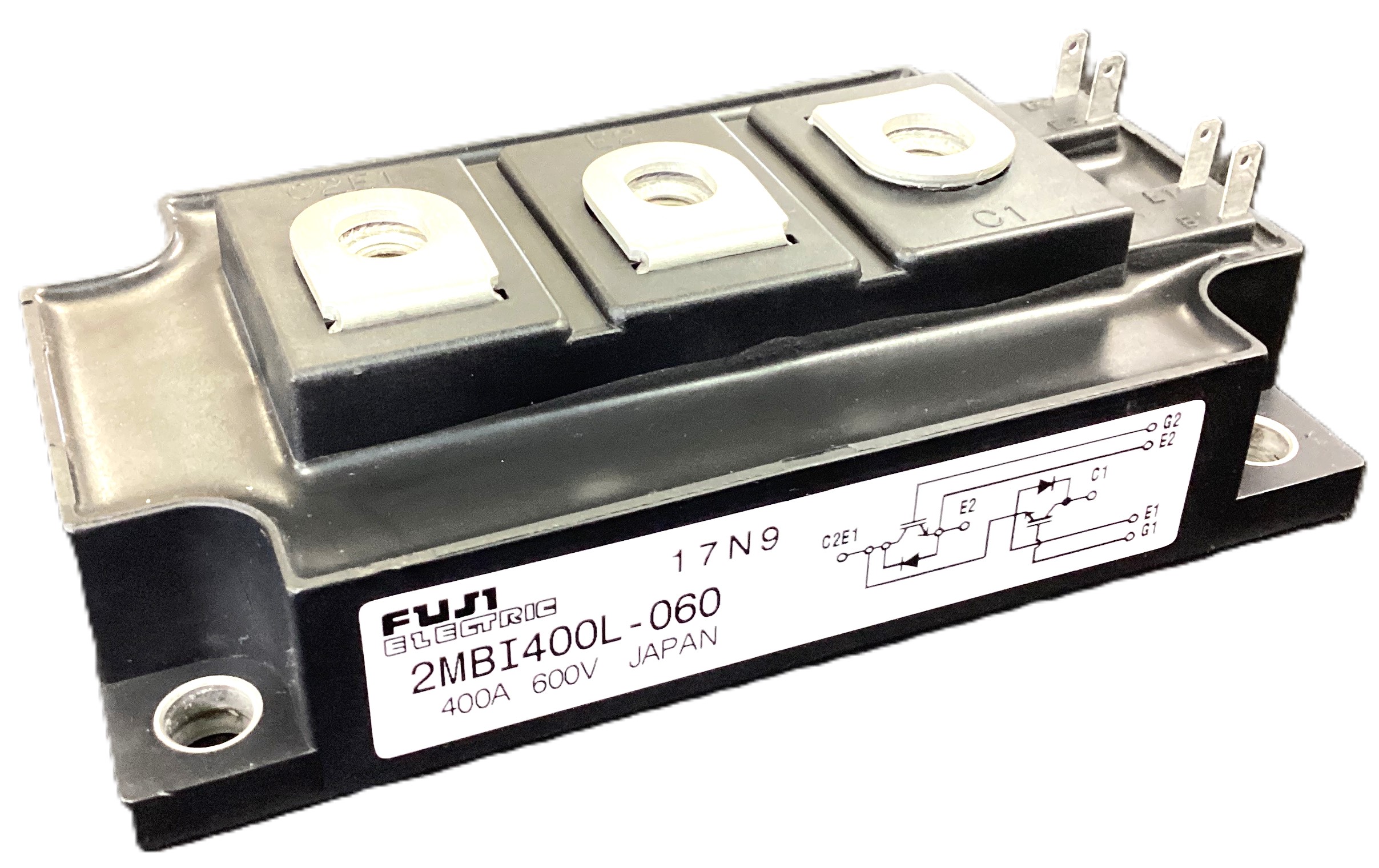

2MBI400L-060

Name: 2MBI400L-060
Brand: FUJI ELE
SKU: 30110328-0000-0000-0000

2MBI400L-060 - FUJI ELE の商品詳細ページです。

２営業日以内に回答いたします

2MBI400L-060 の詳細情報

型番	2MBI400L-060
メーカー	FUJI ELE
Additional Feature	HIGH SPEED SWITCHING
Collector Current-Max (IC)	400 A
Collector-emitter Voltage-Max	600 V
Configuration	SERIES CONNECTED, CENTER TAP, 2 ELEMENTS WITH BUILT-IN DIODE
Fall Time-Max (tf)	350 ns
Gate-emitter Voltage-Max	20 V
JESD-30 Code	R-XUFM-X7
Number of Elements	2
Number of Terminals	7
Package Body Material	UNSPECIFIED
Package Shape	RECTANGULAR
Package Style	FLANGE MOUNT Meter
Polarity/Channel Type	N-CHANNEL
Power Dissipation Ambient-Max	3200 W
Power Dissipation-Max (Abs)	1600 W
Qualification Status	Not Qualified
Sub Category	Insulated Gate BIP Transistors
Surface Mount	NO
Terminal Form	UNSPECIFIED
Terminal Position	UPPER
Transistor Application	POWER CONTROL
Transistor Element Material	SILICON
Turn-off Time-Nom (toff)	700 ns
Turn-on Time-Nom (ton)	600 ns
VCEsat-Max	3.5 V
