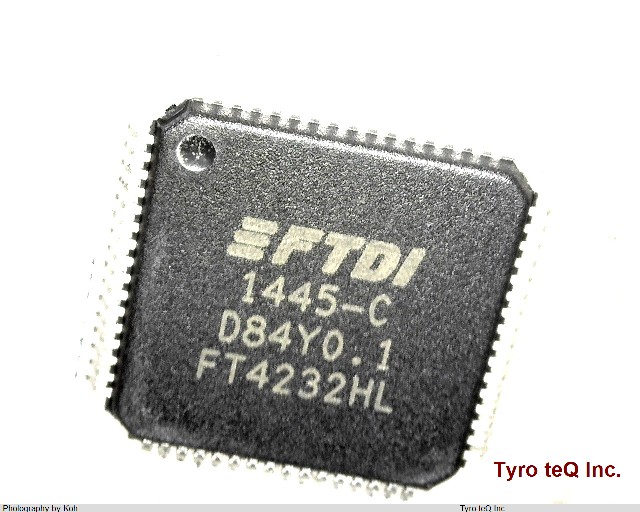

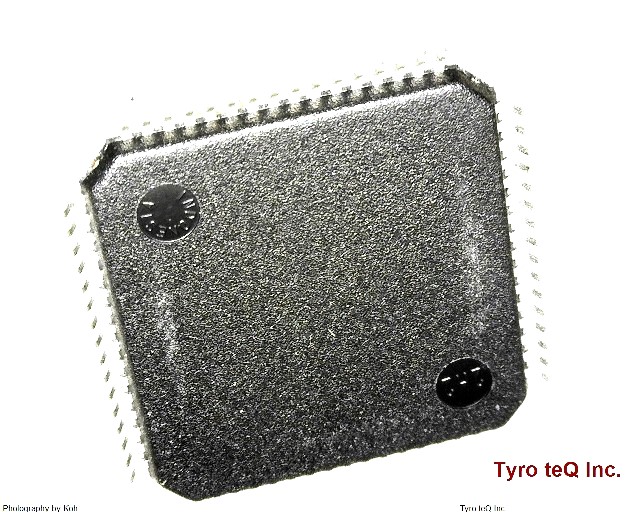

FT4232HL

Name: FT4232HL
Brand: FTDI
SKU: 160147819-0000-0000-0000

FT4232HL - FTDI の商品詳細ページです。

２営業日以内に回答いたします

FT4232HL の詳細情報

型番	FT4232HL
メーカー	FTDI
Address Bus Width	0
Boundary Scan	YES
Bus Compatibility	I2C; RS-232; RS-422; RS-485; SPI; UART; USB
Clock Frequency-Max	12 MHz
Communication Protocol	ASYNC, BIT; SYNC, BYTE
Data Transfer Rate-Max	1.5 MBps
External Data Bus Width	0
JESD-30 Code	S-PQFP-G64
Length	10 mm
Low Power Mode	YES
Moisture Sensitivity Level	3
Number of I/O Lines	8
Number of Serial I/Os	4
Number of Terminals	64
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	LFQFP
Package Equivalence Code	QFP64,.47SQ,20
Package Shape	SQUARE
Package Style	FLATPACK, LOW PROFILE, FINE PITCH Meter
Peak Reflow Temperature (Cel)	260
Qualification Status	Not Qualified
Seated Height-Max	1.6 mm
Supply Voltage-Max	1.98 V
Supply Voltage-Min	1.62 V
Supply Voltage-Nom	1.8 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Form	GULL WING
Terminal Pitch	0.5 mm
Terminal Position	QUAD
Time@Peak Reflow Temperature-Max (s)	40
Width	10 mm
uPs/uCs/Peripheral ICs Type	SERIAL IO/COMMUNICATION CONTROLLER, SERIAL

会社名称	Future Technology Devices International Limited
所在地	Unit 1, 2 Seaward Place Centurion Business Park Glasgow G41 1HH United Kingdom
URL	http://www.ftdichip.com/
