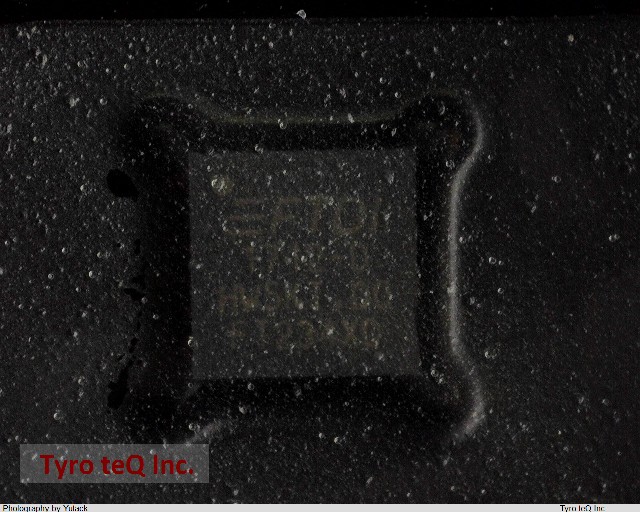

FT234XD-R

Name: FT234XD-R
Brand: FTDI
SKU: 160149199-0000-0000-0000

FT234XD-R - FTDI の商品詳細ページです。

２営業日以内に回答いたします

FT234XD-R の詳細情報

型番	FT234XD-R
メーカー	FTDI
Clock Frequency-Max	12 MHz
Data Transfer Rate-Max	60 MBps
JESD-30 Code	S-PDSO-N12
Length	3 mm
Moisture Sensitivity Level	3
Number of Terminals	12
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	HTSON
Package Equivalence Code	SOLCC12,.12,18
Package Shape	SQUARE
Package Style	SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE Meter
Peak Reflow Temperature (Cel)	260
Power Supplies	1.8/3.3,3.3/5 V
Qualification Status	Not Qualified
Seated Height-Max	0.8 mm
Sub Category	Serial IO/Communication Controllers
Supply Current-Max	8.3 mA
Supply Voltage-Max	5.5 V
Supply Voltage-Min	2.97 V
Supply Voltage-Nom	5 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Form	NO LEAD
Terminal Pitch	0.45 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	40
Width	3 mm
uPs/uCs/Peripheral ICs Type	BUS CONTROLLER, UNIVERSAL SERIAL BUS

会社名称	Future Technology Devices International Limited
所在地	Unit 1, 2 Seaward Place Centurion Business Park Glasgow G41 1HH United Kingdom
URL	http://www.ftdichip.com/
