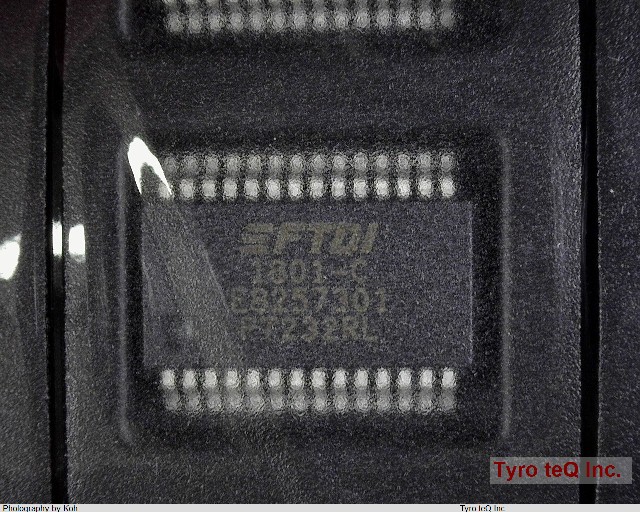

FT232RL-REEL
1
-
- 個
２営業日以内に回答いたします
FT232RL-REEL の詳細情報
- 仕様・詳細
- メーカー情報
| 型番 | FT232RL-REEL |
|---|---|
| メーカー | FTDI |
| Address Bus Width | 0 |
| Bus Compatibility | USB; VBUS; UART |
| Clock Frequency-Max | 12.02 MHz |
| Data Transfer Rate-Max | 60 MBps |
| Drive Interface Standard | RS232; RS422; RS485 |
| External Data Bus Width | 0 |
| JESD-30 Code | R-PDSO-G28 |
| JESD-609 Code | e3 |
| Length | 10.2 mm |
| Moisture Sensitivity Level | 3 |
| Number of Terminals | 28 |
| Operating Temperature-Max | 85 Cel |
| Operating Temperature-Min | -40 Cel |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | SSOP |
| Package Equivalence Code | SSOP28,.307 |
| Package Shape | RECTANGULAR |
| Package Style | SMALL OUTLINE, SHRINK PITCH Meter |
| Peak Reflow Temperature (Cel) | 260 |
| Qualification Status | Not Qualified |
| Seated Height-Max | 2 mm |
| Supply Current-Max | 0.1 mA |
| Supply Voltage-Max | 5.25 V |
| Supply Voltage-Min | 3.3 V |
| Surface Mount | YES |
| Technology | CMOS |
| Temperature Grade | INDUSTRIAL |
| Terminal Finish | MATTE TIN |
| Terminal Form | GULL WING |
| Terminal Pitch | 0.65 mm |
| Terminal Position | DUAL |
| Time@Peak Reflow Temperature-Max (s) | 30 |
| Width | 5.3 mm |
| uPs/uCs/Peripheral ICs Type | BUS CONTROLLER, UNIVERSAL SERIAL BUS |
| 会社名称 | Future Technology Devices International Limited |
|---|---|
| 所在地 | Unit 1, 2 Seaward Place Centurion Business Park Glasgow G41 1HH United Kingdom |
| URL | http://www.ftdichip.com/ |
