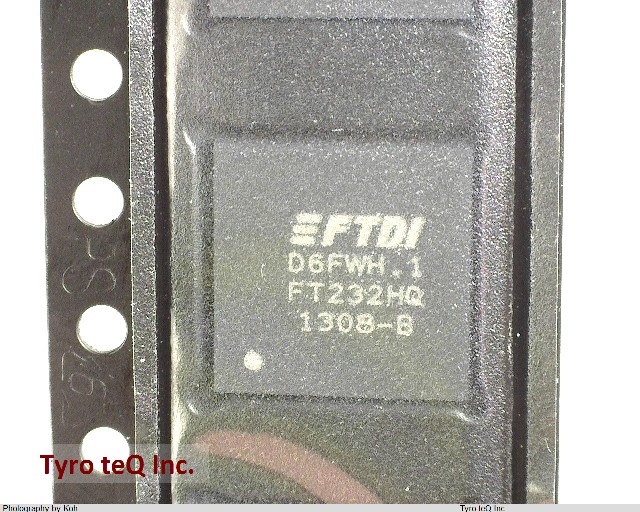

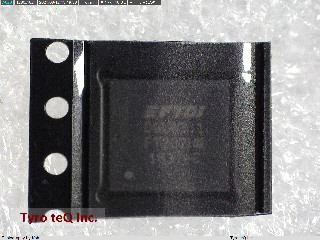

FT232HQ

Name: FT232HQ
Brand: FTDI
SKU: 160145240-0000-0000-0000

FT232HQ - FTDI の商品詳細ページです。

２営業日以内に回答いたします

FT232HQ の詳細情報

型番	FT232HQ
メーカー	FTDI
Address Bus Width	1
Bus Compatibility	I2C
Clock Frequency-Max	12 MHz
Data Transfer Rate-Max	40 MBps
External Data Bus Width	8
JESD-30 Code	S-XQCC-N48
Length	8 mm
Moisture Sensitivity Level	3
Number of Terminals	48
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	UNSPECIFIED
Package Code	HVQCCN
Package Equivalence Code	LCC48,.32SQ,20
Package Shape	SQUARE
Package Style	CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Power Supplies	1.8 V
Qualification Status	Not Qualified
Seated Height-Max	1 mm
Sub Category	Other uPs/uCs/Peripheral ICs
Supply Voltage-Max	1.98 V
Supply Voltage-Min	1.62 V
Supply Voltage-Nom	1.8 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Form	NO LEAD
Terminal Pitch	0.5 mm
Terminal Position	QUAD
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	8 mm
uPs/uCs/Peripheral ICs Type	BUS CONTROLLER, UNIVERSAL SERIAL BUS

会社名称	Future Technology Devices International Limited
所在地	Unit 1, 2 Seaward Place Centurion Business Park Glasgow G41 1HH United Kingdom
URL	http://www.ftdichip.com/
