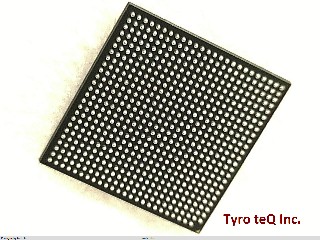

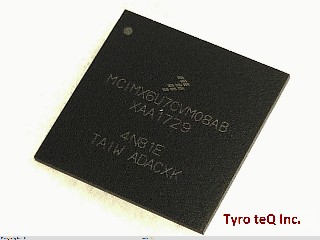

MCIMX6U7CVM08AB

Name: MCIMX6U7CVM08AB
Brand: FREESCALE
SKU: 230762309-0000-0000-0000

MCIMX6U7CVM08AB - FREESCALE の商品詳細ページです。

２営業日以内に回答いたします

MCIMX6U7CVM08AB の詳細情報

型番	MCIMX6U7CVM08AB
メーカー	FREESCALE
Additional Feature	24 MHZ NOMINAL XTAL FREQUENCY AVAILABLE
Address Bus Width	26
Bit Size	32
Boundary Scan	YES
External Data Bus Width	32
Format	FLOATING POINT
Integrated Cache	YES
JESD-30 Code	S-PBGA-B624
JESD-609 Code	e1
Length	21 mm
Low Power Mode	YES
Moisture Sensitivity Level	3
Number of Terminals	624
Operating Temperature-Max	105 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	LFBGA
Package Equivalence Code	BGA624,25X25,32
Package Shape	SQUARE
Package Style	GRID ARRAY, LOW PROFILE, FINE PITCH Meter
Peak Reflow Temperature (Cel)	260
Power Supplies	1.05/1.5 V
Qualification Status	Not Qualified
Seated Height-Max	1.5 mm
Speed	800 rpm
Sub Category	Graphics Processors
Supply Current-Max	2200 mA
Supply Voltage-Max	1.5 V
Supply Voltage-Min	1.275 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	TIN SILVER COPPER
Terminal Form	BALL
Terminal Pitch	0.8 mm
Terminal Position	BOTTOM
Time@Peak Reflow Temperature-Max (s)	40
Width	21 mm
uPs/uCs/Peripheral ICs Type	MICROPROCESSOR, RISC
