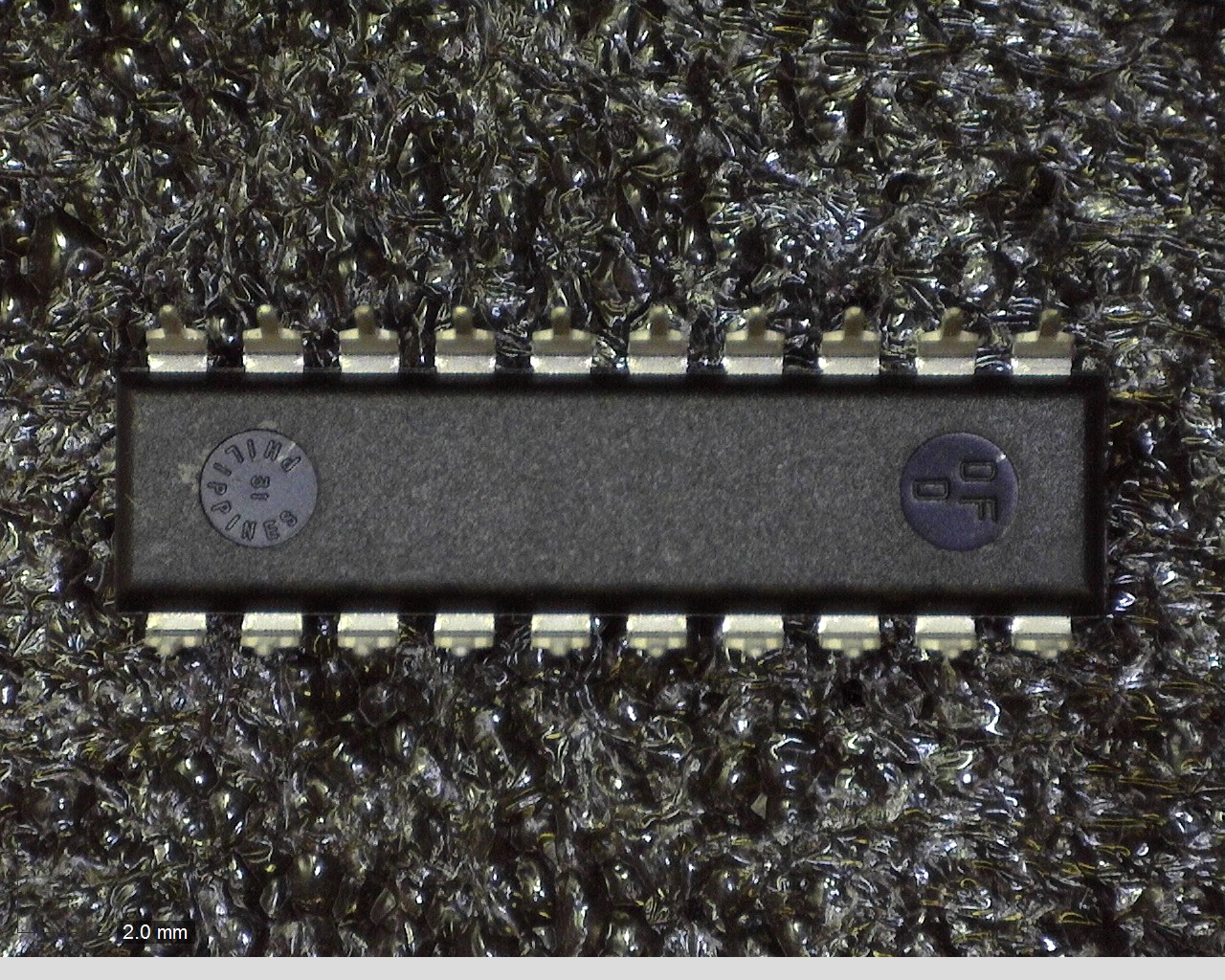

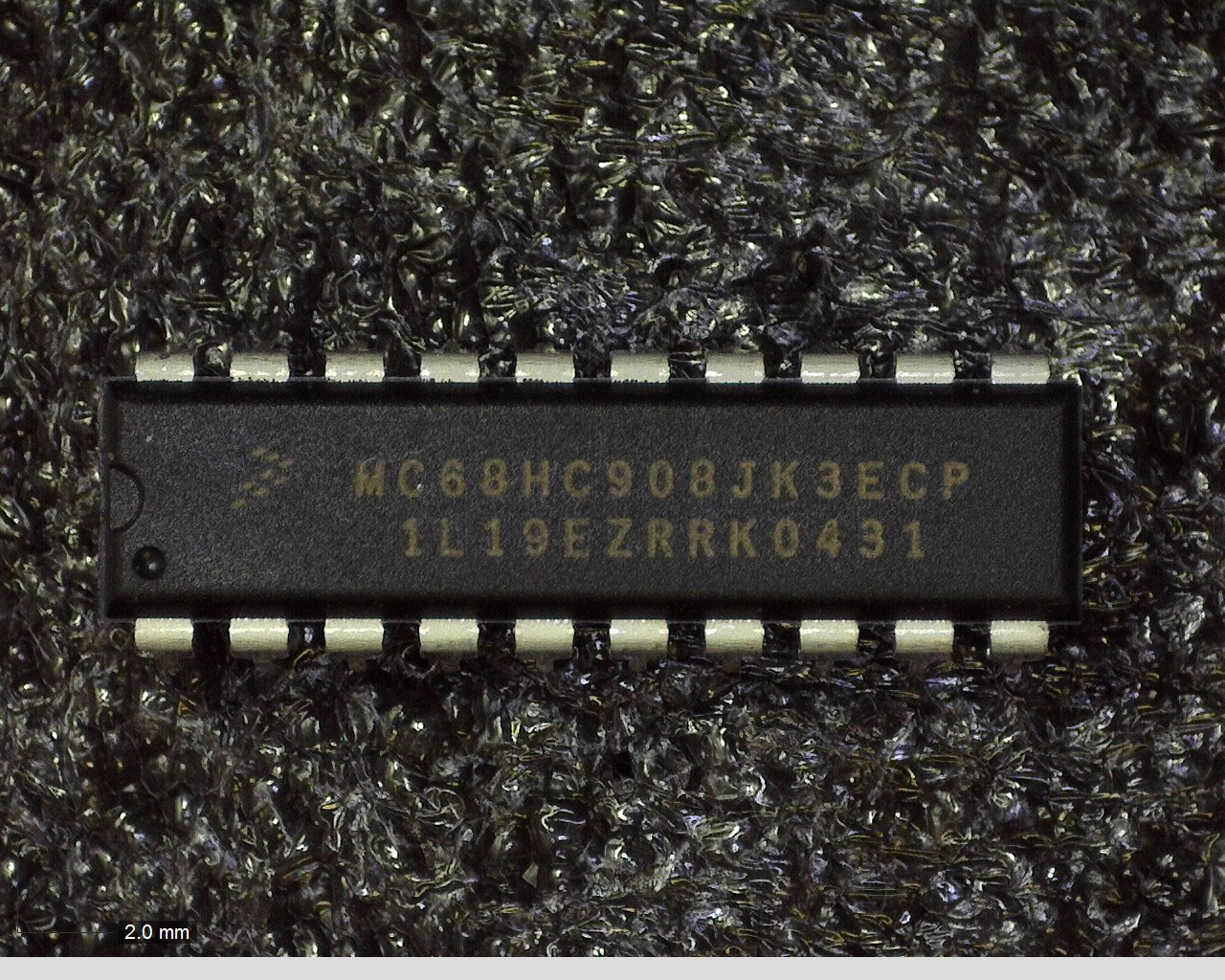

MC68HC908JK3ECP
1
-
- 個
２営業日以内に回答いたします
MC68HC908JK3ECP の詳細情報
- 仕様・詳細
- メーカー情報
| 型番 | MC68HC908JK3ECP |
|---|---|
| メーカー | FREESCALE |
| ADC Channels | YES |
| Additional Feature | ALSO OPERATES AT 5V SUPPLY |
| Address Bus Width | 0 |
| Bit Size | 8 |
| CPU Family | 68HC08 |
| Clock Frequency-Max | 16 MHz |
| DAC Channels | NO |
| DMA Channels | NO |
| External Data Bus Width | 0 |
| JESD-30 Code | R-PDIP-T20 |
| JESD-609 Code | e0 |
| Length | 26.415 mm |
| Number of I/O Lines | 14 |
| Number of Terminals | 20 |
| Operating Temperature-Max | 85 Cel |
| Operating Temperature-Min | -40 Cel |
| PWM Channels | YES |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | DIP |
| Package Equivalence Code | DIP20,.3 |
| Package Shape | RECTANGULAR |
| Package Style | IN-LINE Meter |
| Power Supplies | 3/5 V |
| Qualification Status | Not Qualified |
| RAM (bytes) | 128 |
| ROM (words) | 4096 |
| ROM Programmability | FLASH |
| Seated Height-Max | 4.57 mm |
| Speed | 4 rpm |
| Sub Category | Microcontrollers |
| Supply Current-Max | 11 mA |
| Supply Voltage-Max | 3.3 V |
| Supply Voltage-Min | 2.7 V |
| Supply Voltage-Nom | 3 V |
| Surface Mount | NO |
| Technology | CMOS |
| Temperature Grade | INDUSTRIAL |
| Terminal Finish | TIN LEAD |
| Terminal Form | THROUGH-HOLE |
| Terminal Pitch | 2.54 mm |
| Terminal Position | DUAL |
| Width | 7.62 mm |
| uPs/uCs/Peripheral ICs Type | MICROCONTROLLER |
| 会社名称 | Freescale Semiconductor, Inc. |
|---|---|
| 所在地 | 6501 William Cannon Drive West Austin, Texas 78735,USA |
| URL | http://www.freescale.com/ |
