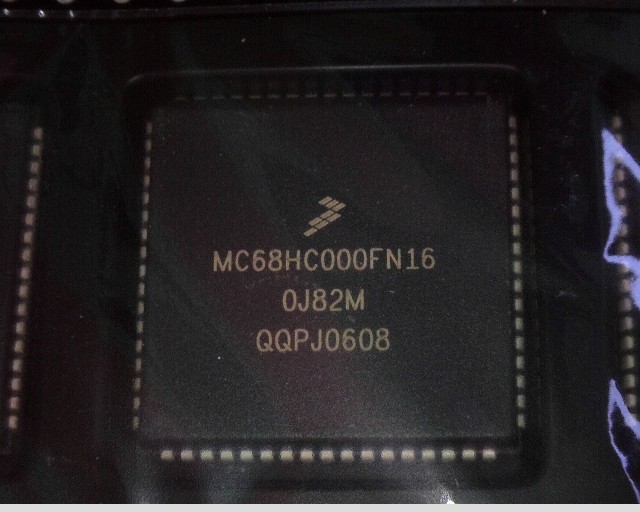

MC68HC000FN16R2

Name: MC68HC000FN16R2
Brand: FREESCALE
SKU: 230753736-0000-0000-0000

MC68HC000FN16R2 - FREESCALE の商品詳細ページです。

２営業日以内に回答いたします

MC68HC000FN16R2 の詳細情報

型番	MC68HC000FN16R2
メーカー	FREESCALE
Address Bus Width	23
Bit Size	32
Boundary Scan	NO
Clock Frequency-Max	16.67 MHz
External Data Bus Width	16
Format	FIXED POINT
Integrated Cache	NO
JESD-30 Code	S-PQCC-J68
JESD-609 Code	e0
Length	24.2062 mm
Low Power Mode	NO
Moisture Sensitivity Level	3
Number of DMA Channels	0
Number of External Interrupts	7
Number of Serial I/Os	0
Number of Terminals	68
On Chip Data RAM Width	0
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	QCCJ
Package Equivalence Code	LDCC68,1.0SQ
Package Shape	SQUARE
Package Style	CHIP CARRIER Meter
Peak Reflow Temperature (Cel)	220
Power Supplies	5 V
Qualification Status	Not Qualified
RAM (words)	0
Seated Height-Max	4.57 mm
Speed	16.67 rpm
Sub Category	Microprocessors
Supply Current-Max	50 mA
Supply Voltage-Max	5.25 V
Supply Voltage-Min	4.75 V
Supply Voltage-Nom	5 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	COMMERCIAL
Terminal Finish	TIN LEAD
Terminal Form	J BEND
Terminal Pitch	1.27 mm
Terminal Position	QUAD
Time@Peak Reflow Temperature-Max (s)	30
Width	24.2062 mm
uPs/uCs/Peripheral ICs Type	MICROPROCESSOR
