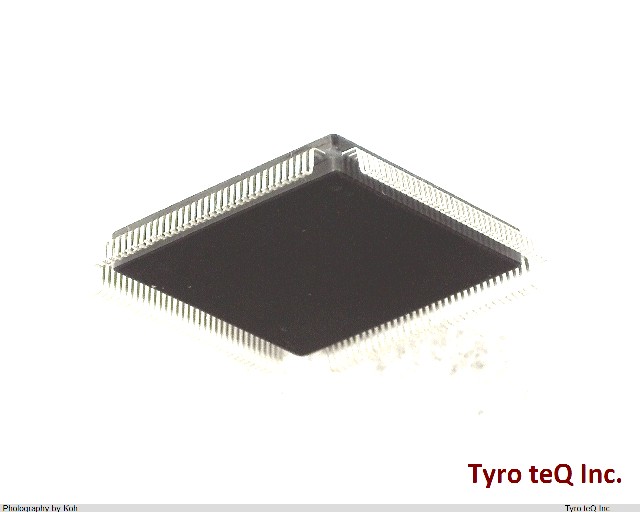

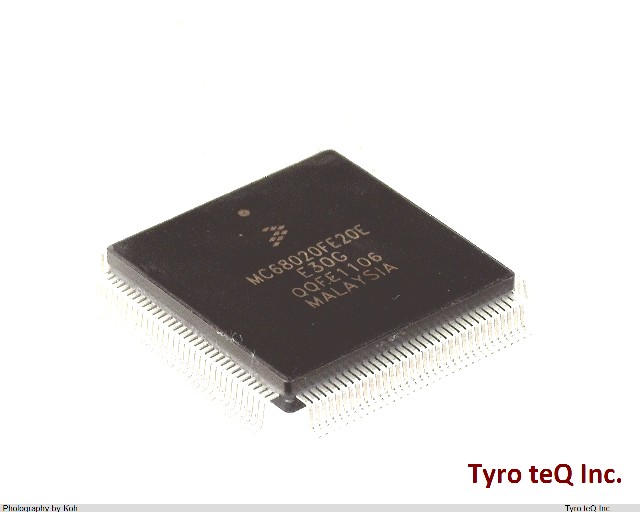

MC68020FE20E データシート

Name: MC68020FE20E
Brand: FREESCALE
SKU: 230217755-0000-0000-0000

MC68020FE20E - FREESCALE の商品詳細ページです。

２営業日以内に回答いたします

MC68020FE20E の詳細情報

型番	MC68020FE20E
メーカー	FREESCALE
データシート
Address Bus Width	32
Bit Size	32
Boundary Scan	NO
Clock Frequency-Max	20 MHz
External Data Bus Width	32
Format	FIXED POINT
Integrated Cache	YES
JESD-30 Code	S-CQFP-G132
JESD-609 Code	e0
Length	22.355 mm
Low Power Mode	NO
Moisture Sensitivity Level	1
Number of DMA Channels	0
Number of External Interrupts	7
Number of Serial I/Os	0
Number of Terminals	132
On Chip Data RAM Width	0
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Package Body Material	CERAMIC, METAL-SEALED COFIRED
Package Code	QFP
Package Equivalence Code	QFP132,1.2SQ
Package Shape	SQUARE
Package Style	FLATPACK Meter
Peak Reflow Temperature (Cel)	260
Power Supplies	5 V
Qualification Status	Not Qualified
RAM (words)	0
Seated Height-Max	4.318 mm
Speed	20 rpm
Sub Category	Microprocessors
Supply Voltage-Max	5.25 V
Supply Voltage-Min	4.75 V
Supply Voltage-Nom	5 V
Surface Mount	YES
Technology	HCMOS
Temperature Grade	COMMERCIAL
Terminal Finish	Matte Tin (Sn)
Terminal Form	GULL WING
Terminal Pitch	0.635 mm
Terminal Position	QUAD
Time@Peak Reflow Temperature-Max (s)	40
Width	22.355 mm
uPs/uCs/Peripheral ICs Type	MICROPROCESSOR
