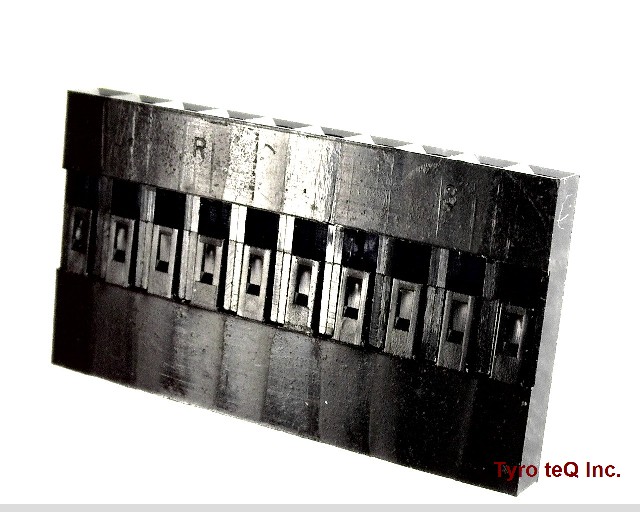

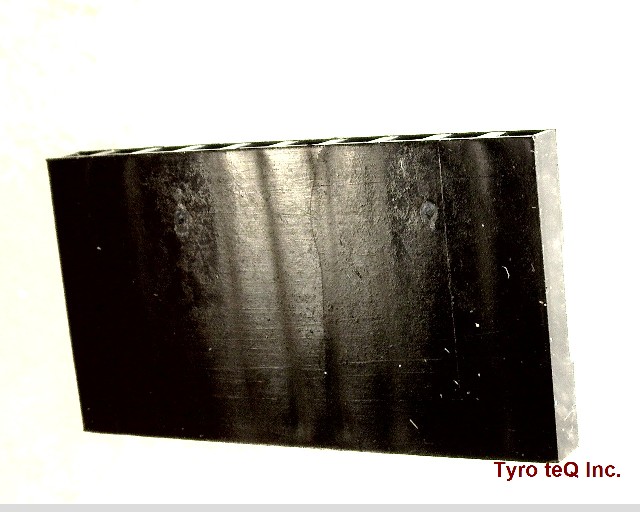

65039-027
1
-
- 個
２営業日以内に回答いたします
65039-027 の詳細情報
- 仕様・詳細
- メーカー情報
| 型番 | 65039-027 |
|---|---|
| メーカー | FCI |
| Additional Feature | BAG PACKAGING |
| Body Breadth | 0.1 inch |
| Body Depth | 0.545 inch |
| Body Length | 0.994 inch |
| Body/Shell Style | PLUG |
| Connector Type | BOARD CONNECTOR |
| Contact Design | PREASSEM CONN |
| Contact Finish - Mating | NOT SPECIFIED |
| Contact Gender | FEMALE |
| Contact Material | NOT SPECIFIED |
| Contact Pattern | RECTANGULAR |
| Contact Resistance | 2 mohm |
| Contact Style | SQ PIN-SKT |
| DIN Conformance | NO |
| Dielectric Withstanding Voltage | 1400VAC V |
| Durability | 1000 Cycles |
| Filter Feature | NO |
| IEC Conformance | NO |
| Insulation Resistance | 5000000000 ohm |
| Insulator Color | BLACK |
| Insulator Material | POLYPHELYNENE |
| MIL Conformance | NO |
| Manufacturer Series | 65039 |
| Mating Contact Pitch | 0.1 inch |
| Mixed Contacts | NO |
| Mounting Option 1 | LATCH |
| Mounting Option 2 | LOCKING |
| Mounting Type | CABLE |
| Number Of Connectors | ONE |
| Number of Rows Loaded | 1 |
| Operating Temperature-Max | 105 Cel |
| Operating Temperature-Min | -40 Cel |
| Option | GENERAL PURPOSE |
| Polarization Key | POLARIZED HOUSING |
| Reference Standard | UL, CSA |
| Reliability | COMMERCIAL |
| Sub Category | Headers and Edge Type Connectors |
| Termination Type | CRIMP |
| Total Number of Contacts | 10 |
| UL Flammability Code | 94V-0 |
| Wire Size-Max | 22 AWG |
| Wire Size-Min | 36 AWG |
| 会社名称 | FCI SA |
|---|---|
| 設立 | 1988 |
| 所在地 | Immeuble Calypso - 18 Parc Ariane III - 3-5 Rue Alfred Kastler |
| URL | http://portal.fciconnect.com/ |
