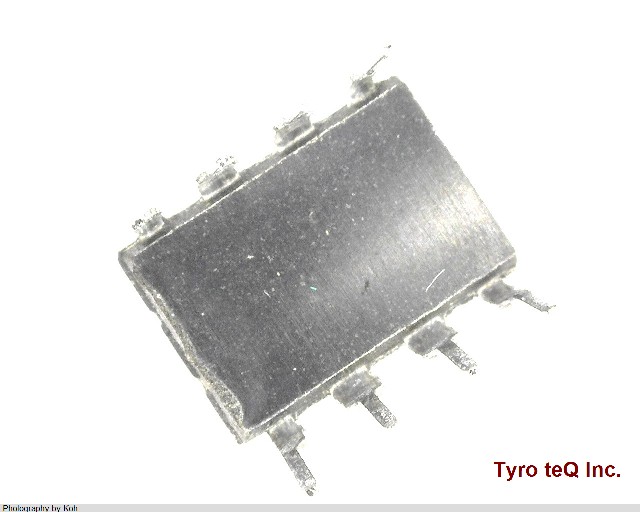

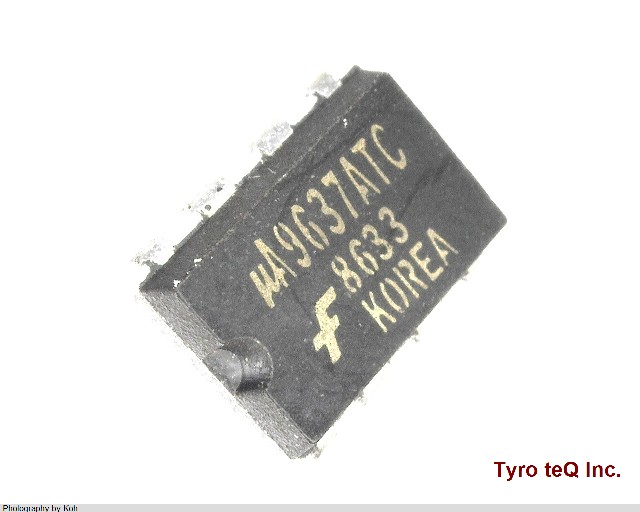

UA9637ATC

Name: UA9637ATC
Brand: FAIRCHILD
SKU: 310095312-0000-0000-0000

UA9637ATC - FAIRCHILD の商品詳細ページです。

２営業日以内に回答いたします

UA9637ATC の詳細情報

型番	UA9637ATC
メーカー	FAIRCHILD
Differential Output	NO
Input Characteristics	DIFFERENTIAL SCHMITT TRIGGER
Interface IC Type	LINE RECEIVER
Interface Standard	EIA-422; EIA-423
JESD-30 Code	R-PDIP-T8
JESD-609 Code	e0
Length	9.817 mm
Moisture Sensitivity Level	2A
Number of Functions	2
Number of Terminals	8
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Output Characteristics	TOTEM-POLE
Output Low Current-Max	0.02 Amp
Output Polarity	TRUE
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP8,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Power Supplies	5 V
Qualification Status	Not Qualified
Receive Delay-Max	0 ns
Receiver Number of Bits	1
Seated Height-Max	5.08 mm
Sub Category	Line Driver or Receivers
Supply Current-Max	50 mA
Supply Voltage-Max	5.25 V
Supply Voltage-Min	4.75 V
Supply Voltage-Nom	5 V
Surface Mount	NO
Technology	BIPOLAR
Temperature Grade	COMMERCIAL
Terminal Finish	TIN LEAD
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Width	7.62 mm
