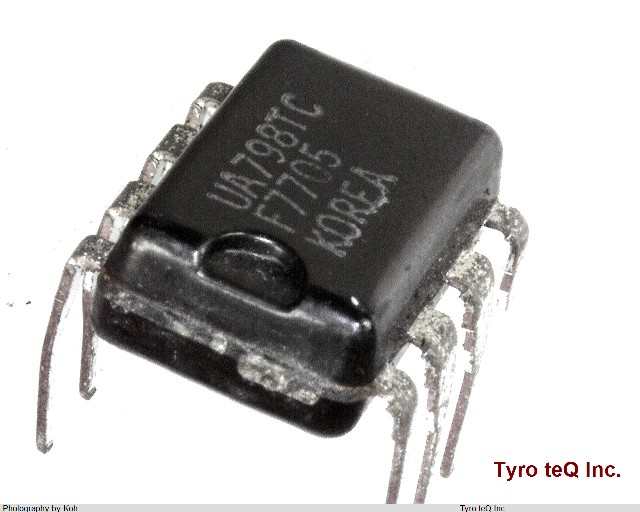

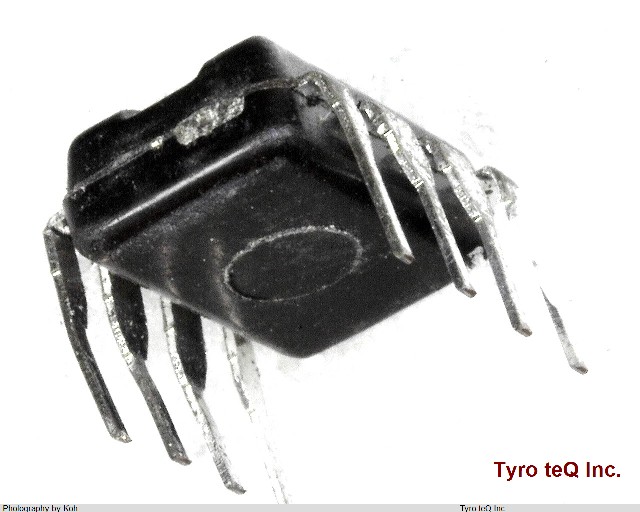

UA798TC
1
-
- 個
２営業日以内に回答いたします
UA798TC の詳細情報
- 仕様・詳細
- メーカー情報
| 型番 | UA798TC |
|---|---|
| メーカー | FAIRCHILD |
| Amplifier Type | OPERATIONAL AMPLIFIER |
| Architecture | VOLTAGE-FEEDBACK |
| Bias Current-Max (IIB) @25C | 0.25 uA |
| Frequency Compensation | YES |
| Input Offset Voltage-Max | 7500 uV |
| JESD-30 Code | R-PDIP-T8 |
| JESD-609 Code | e0 |
| Low-Offset | NO |
| Moisture Sensitivity Level | 2A |
| Number of Functions | 2 |
| Number of Terminals | 8 |
| Operating Temperature-Max | 70 Cel |
| Operating Temperature-Min | 0 Cel |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | DIP |
| Package Equivalence Code | DIP8,.3 |
| Package Shape | RECTANGULAR |
| Package Style | IN-LINE Meter |
| Power Supplies | 5/+-15 V |
| Qualification Status | Not Qualified |
| Slew Rate-Nom | 0.6 V/us |
| Sub Category | Operational Amplifier |
| Supply Current-Max | 4 mA |
| Supply Voltage Limit-Max | 18 V |
| Surface Mount | NO |
| Technology | BIPOLAR |
| Temperature Grade | COMMERCIAL |
| Terminal Finish | TIN LEAD |
| Terminal Form | THROUGH-HOLE |
| Terminal Pitch | 2.54 mm |
| Terminal Position | DUAL |
| Unity Gain BW-Nom | 1000 kHz |
| Voltage Gain-Min | 15000 |
| 会社名称 | Fairchild Semiconductor Corporation |
|---|---|
| 設立 | 1957 |
| 所在地 | 3030 Orchard Parkway San Jose, CA 95134 United States |
| URL | http://www.fairchildsemi.com/ |
