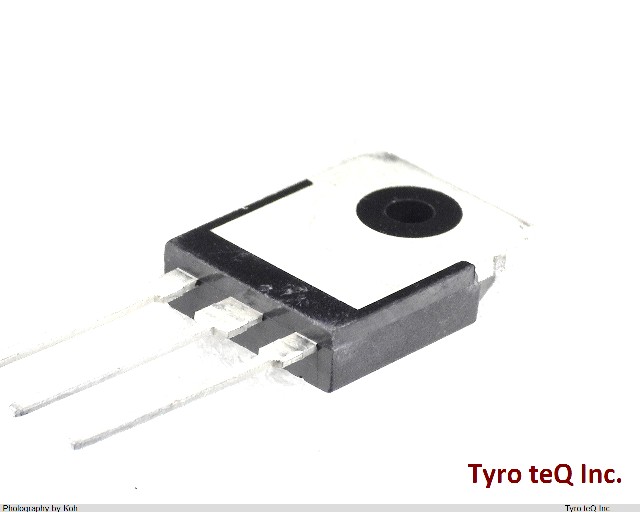

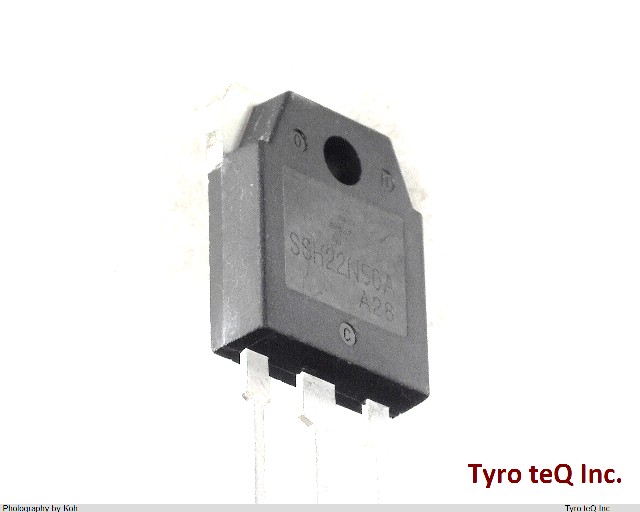

SSH22N50A データシート

Name: SSH22N50A
Brand: FAIRCHILD
SKU: 290151004-0000-0000-0000

SSH22N50A - FAIRCHILD の商品詳細ページです。

２営業日以内に回答いたします

SSH22N50A の詳細情報

型番	SSH22N50A
メーカー	FAIRCHILD
データシート
Avalanche Energy Rating (Eas)	1076 mJ
Configuration	SINGLE WITH BUILT-IN DIODE
DS Breakdown Voltage-Min	500 V
Drain Current-Max (Abs) (ID)	22 A
Drain Current-Max (ID)	22 A
Drain-source On Resistance-Max	0.25 ohm
FET Technology	METAL-OXIDE SEMICONDUCTOR
JESD-30 Code	R-PSFM-T3
JESD-609 Code	e3
Number of Elements	1
Number of Terminals	3
Operating Mode	ENHANCEMENT MODE
Operating Temperature-Max	150 Cel
Package Body Material	PLASTIC/EPOXY
Package Shape	RECTANGULAR
Package Style	FLANGE MOUNT Meter
Polarity/Channel Type	N-CHANNEL
Power Dissipation-Max (Abs)	278 W
Pulsed Drain Current-Max (IDM)	88 A
Qualification Status	Not Qualified
Sub Category	FET General Purpose Power
Surface Mount	NO
Terminal Finish	MATTE TIN
Terminal Form	THROUGH-HOLE
Terminal Position	SINGLE
Transistor Application	SWITCHING
Transistor Element Material	SILICON
