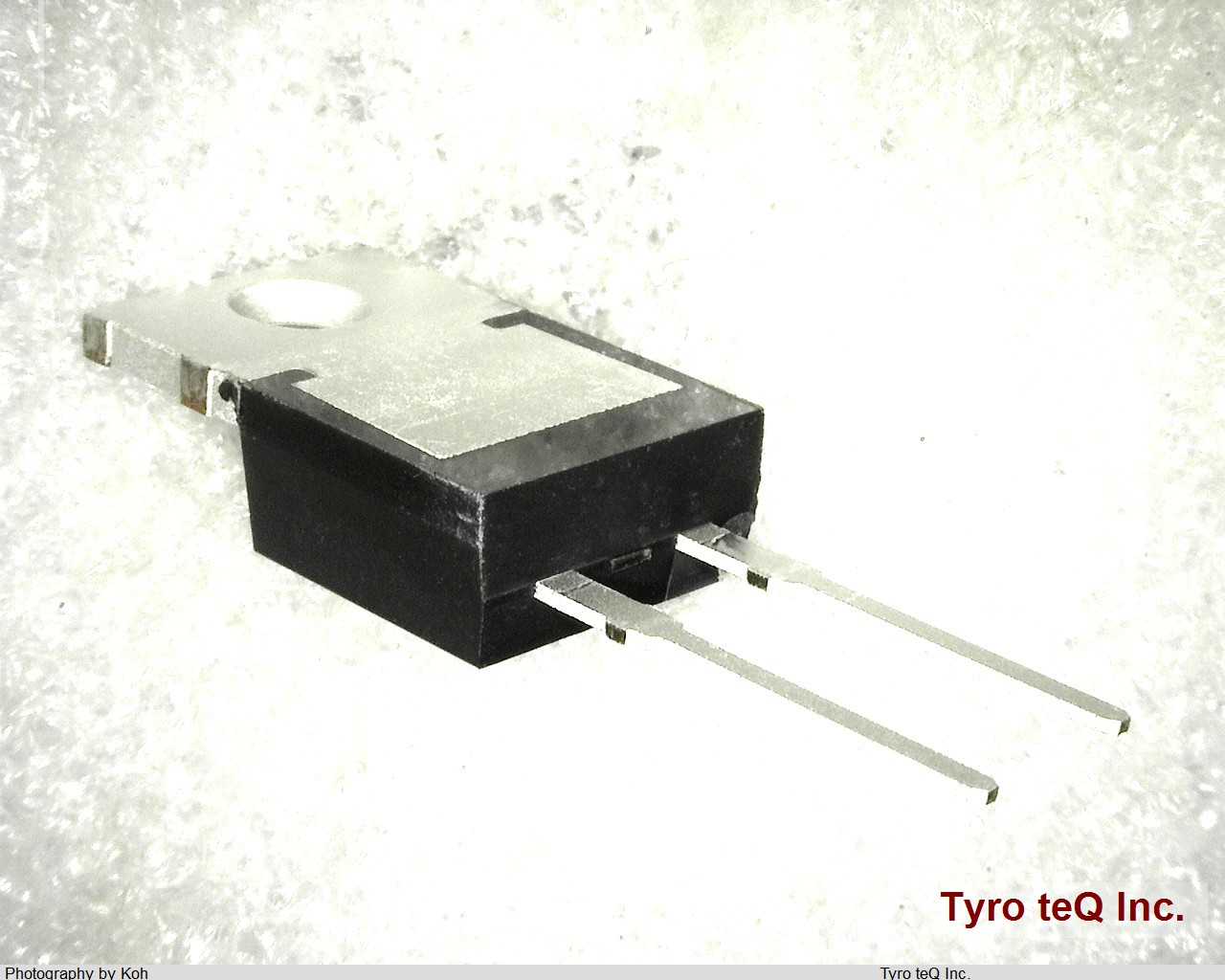

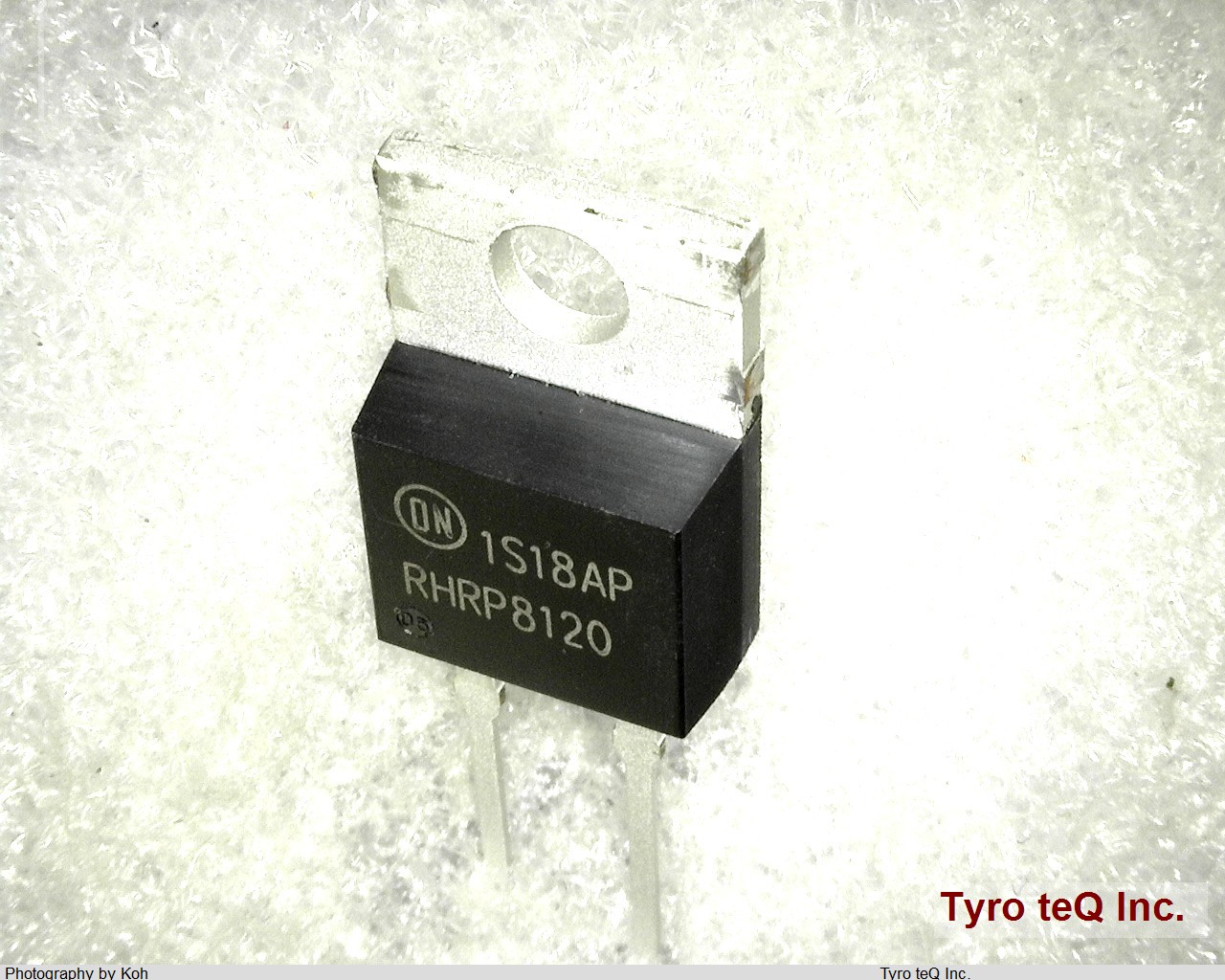

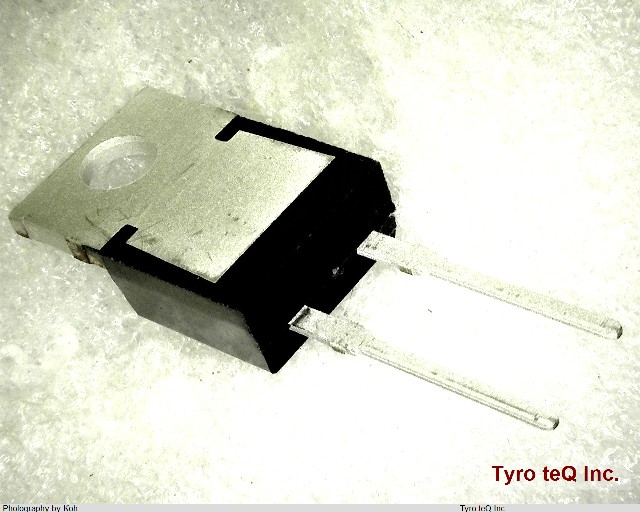

RHRP8120 データシート

Name: RHRP8120
Brand: FAIRCHILD
SKU: 280007607-0000-0000-0000

RHRP8120 - FAIRCHILD の商品詳細ページです。

２営業日以内に回答いたします

RHRP8120 の詳細情報

型番	RHRP8120
メーカー	FAIRCHILD
データシート
Additional Feature	FREE WHEELING DIODE
Application	HYPERFAST SOFT RECOVERY
Case Connection	CATHODE
Configuration	COMMON CATHODE, 2 ELEMENTS
Diode Element Material	SILICON
Diode Type	RECTIFIER DIODE
Forward Voltage-Max (VF)	2.6 V
JEDEC-95 Code	TO-220AB
JESD-30 Code	R-PSFM-T2
JESD-609 Code	e0
Non-rep Pk Forward Current-Max	100 A
Number of Elements	1
Number of Phases	1
Number of Terminals	2
Operating Temperature-Max	175 Cel
Operating Temperature-Min	-65 Cel
Output Current-Max	8 A
Package Body Material	PLASTIC/EPOXY
Package Shape	RECTANGULAR
Package Style	FLANGE MOUNT Meter
Power Dissipation-Max	75 W
Qualification Status	Not Qualified
Rep Pk Reverse Voltage-Max	1200 V
Reverse Current-Max	100 uA
Reverse Recovery Time-Max	0.065 us
Reverse Test Voltage	1200 V
Sub Category	Rectifier Diodes
Surface Mount	NO
Technology	AVALANCHE
Terminal Finish	MATTE TIN
Terminal Form	THROUGH-HOLE
Terminal Position	SINGLE
