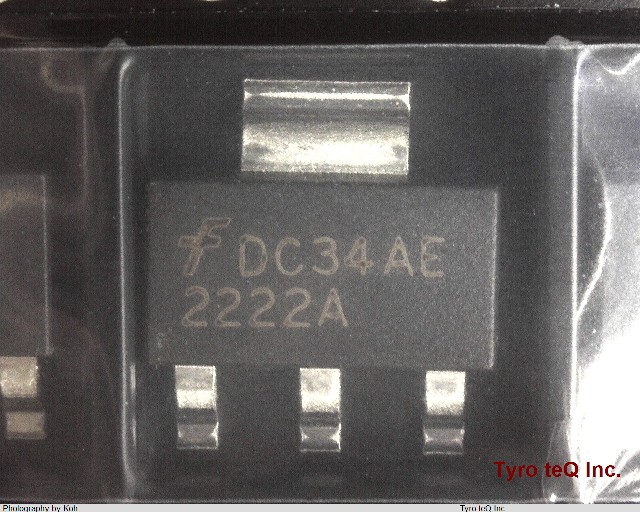

PZT2222A
1
-
- 個
２営業日以内に回答いたします
PZT2222A の詳細情報
- 仕様・詳細
- メーカー情報
| 型番 | PZT2222A |
|---|---|
| メーカー | FAIRCHILD |
| Case Connection | COLLECTOR |
| Collector Current-Max (IC) | 0.6 A |
| Collector-base Capacitance-Max | 8 pF |
| Collector-emitter Voltage-Max | 40 V |
| Configuration | SINGLE |
| DC Current Gain-Min (hFE) | 35 |
| Fall Time-Max (tf) | 60 ns |
| JEDEC-95 Code | TO-261AA |
| JESD-30 Code | R-PDSO-G3 |
| JESD-609 Code | e0 |
| Moisture Sensitivity Level | 1 |
| Number of Elements | 1 |
| Number of Terminals | 3 |
| Operating Temperature-Max | 150 Cel |
| Operating Temperature-Min | -65 Cel |
| Package Body Material | PLASTIC/EPOXY |
| Package Shape | RECTANGULAR |
| Package Style | SMALL OUTLINE Meter |
| Peak Reflow Temperature (Cel) | 235 |
| Polarity/Channel Type | NPN |
| Power Dissipation Ambient-Max | 1 W |
| Power Dissipation-Max (Abs) | 1 W |
| Qualification Status | Not Qualified |
| Reference Standard | AEC-Q101 |
| Rise Time-Max (tr) | 25 ns |
| Sub Category | Other Transistors |
| Surface Mount | YES |
| Terminal Finish | MATTE TIN |
| Terminal Form | GULL WING |
| Terminal Position | DUAL |
| Time@Peak Reflow Temperature-Max (s) | 10 |
| Transistor Application | AMPLIFIER |
| Transistor Element Material | SILICON |
| Transition Frequency-Nom (fT) | 200 MHz |
| Turn-off Time-Max (toff) | 250 ns |
| Turn-on Time-Max (ton) | 35 ns |
| VCEsat-Max | 0.3 V |
| 会社名称 | Fairchild Semiconductor Corporation |
|---|---|
| 設立 | 1957 |
| 所在地 | 3030 Orchard Parkway San Jose, CA 95134 United States |
| URL | http://www.fairchildsemi.com/ |
