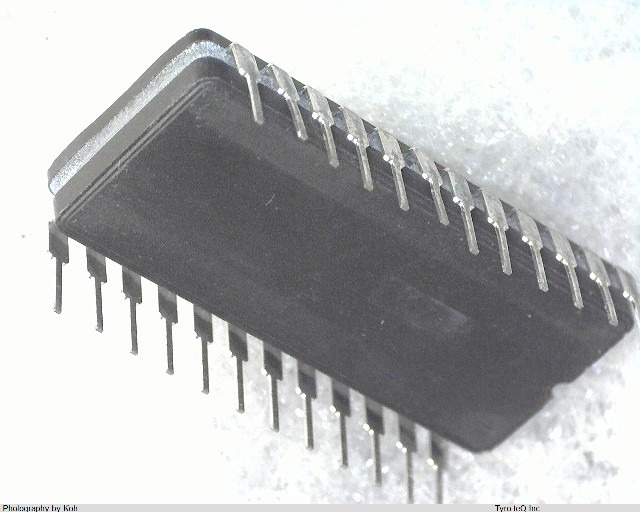

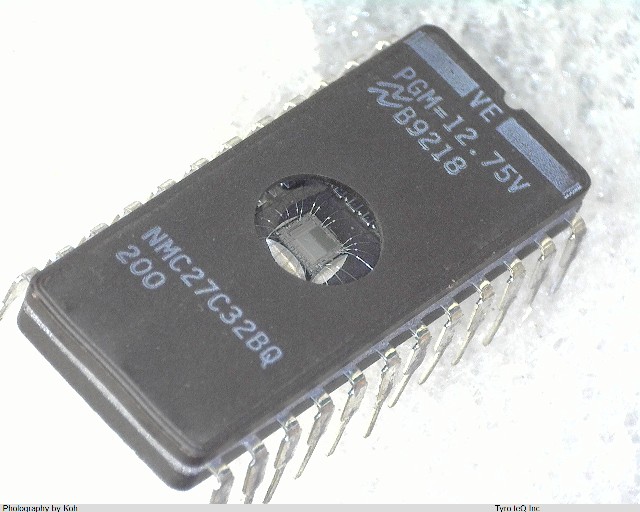

NMC27C32BQ200 データシート

Name: NMC27C32BQ200
Brand: FAIRCHILD
SKU: 240003216-0000-0000-0000

NMC27C32BQ200 - FAIRCHILD の商品詳細ページです。

２営業日以内に回答いたします

NMC27C32BQ200 の詳細情報

型番	NMC27C32BQ200
メーカー	FAIRCHILD
データシート
Access Time-Max	200 ns
Additional Feature	TTL/CMOS COMPATIBLE INPUT & OUTPUT LEVELS
I/O Type	COMMON
JESD-30 Code	R-GDIP-T24
JESD-609 Code	e0
Memory Density	32768 bit
Memory IC Type	UVPROM
Memory Width	8
Number of Functions	1
Number of Terminals	24
Number of Words	4096 words
Number of Words Code	4K
Operating Mode	ASYNCHRONOUS
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Organization	4KX8
Output Characteristics	3-STATE
Package Body Material	CERAMIC, GLASS-SEALED
Package Code	WDIP
Package Equivalence Code	DIP24,.6
Package Shape	RECTANGULAR
Package Style	IN-LINE, WINDOW Meter
Parallel/Serial	PARALLEL
Power Supplies	5 V
Qualification Status	Not Qualified
Seated Height-Max	5.969 mm
Standby Current-Max	0.0001 Amp
Sub Category	EPROMs
Supply Current-Max	0.02 mA
Supply Voltage-Max (Vsup)	5.5 V
Supply Voltage-Min (Vsup)	4.5 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	NO
Technology	CMOS
Temperature Grade	COMMERCIAL
Terminal Finish	TIN LEAD
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Width	15.24 mm
