NM27C512Q120 データシート Fairchild

NM27C512Q120 - FAIRCHILD の商品詳細ページです。

1

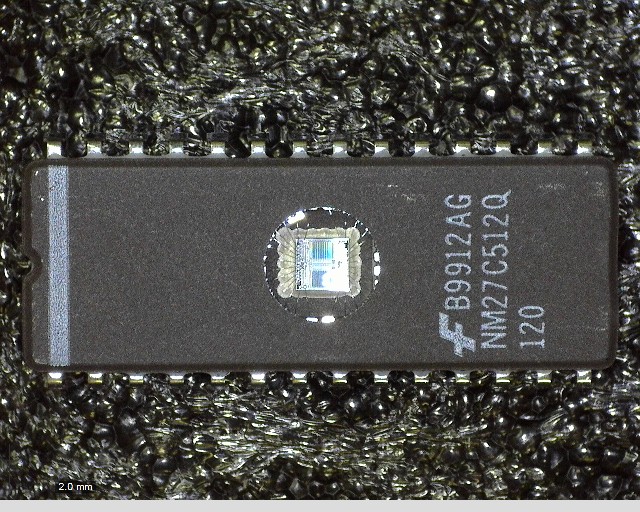

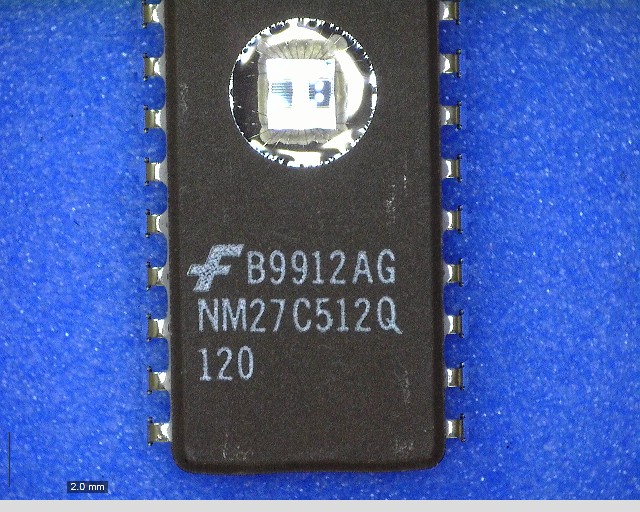

NM27C512Q120
  • NM27C512Q120
  • NM27C512Q120
  • NM27C512Q120
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • 個
２営業日以内に回答いたします
この商品のお問い合わせ

NM27C512Q120 の詳細情報

  • 仕様・詳細
  • メーカー情報
型番NM27C512Q120
メーカーFAIRCHILD
データシートProduct_list_pdf
Access Time-Max 120 ns
I/O Type COMMON
JESD-30 Code R-GDIP-T28
JESD-609 Code e0
Memory Density 524288 bit
Memory IC Type UVPROM
Memory Width 8
Number of Functions 1
Number of Terminals 28
Number of Words 65536 words
Number of Words Code 64K
Operating Mode ASYNCHRONOUS
Operating Temperature-Max 70 Cel
Operating Temperature-Min 0 Cel
Organization 64KX8
Output Characteristics 3-STATE
Package Body Material CERAMIC, GLASS-SEALED
Package Code DIP
Package Equivalence Code DIP28,.6
Package Shape RECTANGULAR
Package Style IN-LINE Meter
Parallel/Serial PARALLEL
Power Supplies 5 V
Qualification Status Not Qualified
Seated Height-Max 5.715 mm
Standby Current-Max 0.0001 Amp
Sub Category EPROMs
Supply Current-Max 0.04 mA
Supply Voltage-Max (Vsup) 5.5 V
Supply Voltage-Min (Vsup) 4.5 V
Supply Voltage-Nom (Vsup) 5 V
Surface Mount NO
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Finish TIN LEAD
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
Width 15.24 mm
会社名称Fairchild Semiconductor Corporation
設立1957
所在地3030 Orchard Parkway San Jose, CA 95134 United States
URLhttp://www.fairchildsemi.com/
