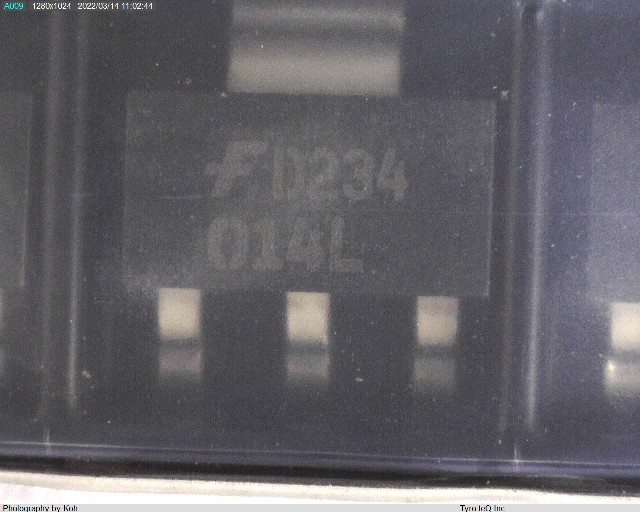

NDT014L
データシート
1
-
- 個
２営業日以内に回答いたします
NDT014L の詳細情報
- 仕様・詳細
- メーカー情報
| 型番 | NDT014L |
|---|---|
| メーカー | FAIRCHILD |
| データシート |  |
| Additional Feature | LOGIC LEVEL COMPATIBLE |
| Case Connection | DRAIN |
| Configuration | SINGLE WITH BUILT-IN DIODE |
| DS Breakdown Voltage-Min | 60 V |
| Drain Current-Max (Abs) (ID) | 2.6 A |
| Drain Current-Max (ID) | 2.6 A |
| Drain-source On Resistance-Max | 0.16 ohm |
| FET Technology | METAL-OXIDE SEMICONDUCTOR |
| JEDEC-95 Code | TO-261 |
| JESD-30 Code | R-PDSO-G3 |
| JESD-609 Code | e0 |
| Moisture Sensitivity Level | 1 |
| Number of Elements | 1 |
| Number of Terminals | 3 |
| Operating Mode | ENHANCEMENT MODE |
| Operating Temperature-Max | 150 Cel |
| Package Body Material | PLASTIC/EPOXY |
| Package Shape | RECTANGULAR |
| Package Style | SMALL OUTLINE Meter |
| Peak Reflow Temperature (Cel) | 260 |
| Polarity/Channel Type | N-CHANNEL |
| Power Dissipation Ambient-Max | 1.1 W |
| Power Dissipation-Max (Abs) | 3 W |
| Pulsed Drain Current-Max (IDM) | 10 A |
| Qualification Status | Not Qualified |
| Sub Category | FET General Purpose Power |
| Surface Mount | YES |
| Terminal Finish | MATTE TIN |
| Terminal Form | GULL WING |
| Terminal Position | DUAL |
| Time@Peak Reflow Temperature-Max (s) | 30 |
| Transistor Application | SWITCHING |
| Transistor Element Material | SILICON |
| Turn-off Time-Max (toff) | 40 ns |
| Turn-on Time-Max (ton) | 37 ns |
| 会社名称 | Fairchild Semiconductor Corporation |
|---|---|
| 設立 | 1957 |
| 所在地 | 3030 Orchard Parkway San Jose, CA 95134 United States |
| URL | http://www.fairchildsemi.com/ |
