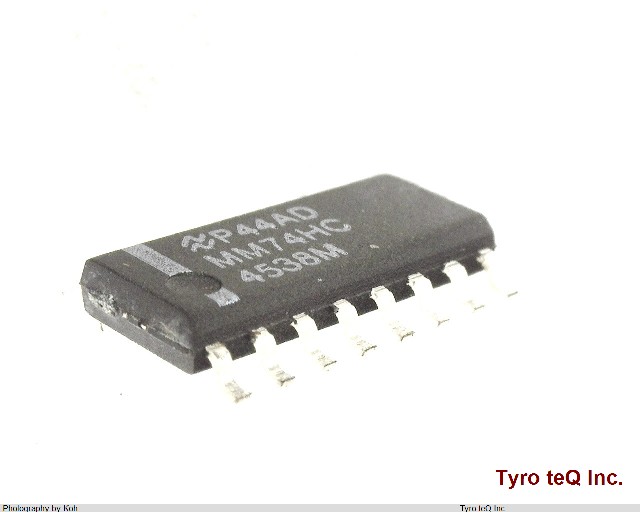

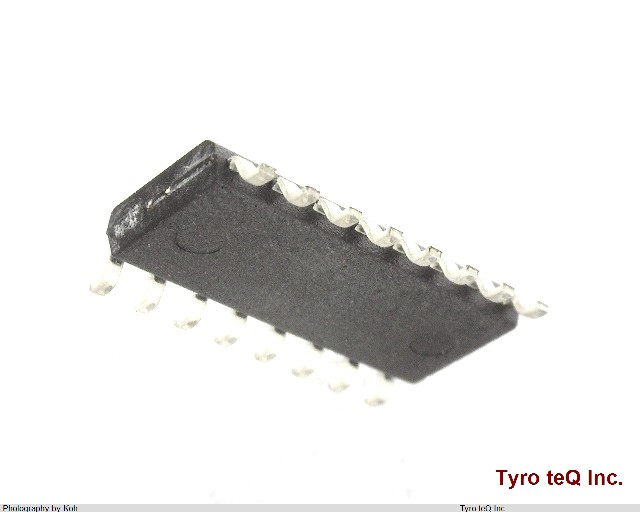

MM74HC4538M データシート

Name: MM74HC4538M
Brand: FAIRCHILD
SKU: 230021784-0000-0000-0000

MM74HC4538M - FAIRCHILD の商品詳細ページです。

No Image

２営業日以内に回答いたします

高速CMOS標準ロジックIC|パッケージ： Small Outline Integrated Circuit (SOIC), JEDEC MS-012, 0.150 Narrow

MM74HC4538M の詳細情報

型番	MM74HC4538M
メーカー	FAIRCHILD
種別	高速CMOS標準ロジックIC
データシート
Additional Feature	RETRIGGERABLE; MIN OUTPUT PULSE WIDTH = 120NS @ REXT = 1K OHM & CEXT = 12PF
Family	HC/UH
JESD-30 Code	R-PDSO-G16
JESD-609 Code	e0
Length	5 mm
Load Capacitance (CL)	50 pF
Logic IC Type	MONOSTABLE MULTIVIBRATOR
Moisture Sensitivity Level	1
Number of Data/Clock Inputs	1
Number of Functions	2
Number of Terminals	16
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output Polarity	COMPLEMENTARY
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP16,.25
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Peak Reflow Temperature (Cel)	260
Power Supplies	2/6 V
Propagation Delay (tpd)	69 ns
Qualification Status	Not Qualified
Seated Height-Max	1.1 mm
Sub Category	Prescaler/Multivibrators
Supply Voltage-Max (Vsup)	6 V
Supply Voltage-Min (Vsup)	2 V
Supply Voltage-Nom (Vsup)	4.5 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	MATTE TIN
Terminal Form	GULL WING
Terminal Pitch	0.65 mm
Terminal Position	DUAL
Width	3.9 mm

会社名称	Fairchild Semiconductor Corporation
設立	1957
所在地	3030 Orchard Parkway San Jose, CA 95134 United States
URL	http://www.fairchildsemi.com/
