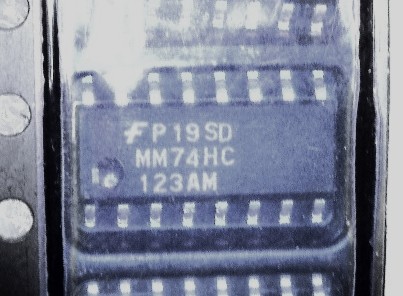

MM74HC123AM データシート

Name: MM74HC123AM
Brand: FAIRCHILD
SKU: 230056866-0000-0000-0000

MM74HC123AM - FAIRCHILD の商品詳細ページです。

No Image

２営業日以内に回答いたします

高速CMOS標準ロジックIC|パッケージ： Small Outline Integrated Circuit (SOIC), JEDEC MS-012, 0.150 Narrow

MM74HC123AM の詳細情報

型番	MM74HC123AM
メーカー	FAIRCHILD
種別	高速CMOS標準ロジックIC
データシート
Additional Feature	RETRIGGERABLE; TRIGGERABLE FROM CLEAR INPUT ALSO
Family	HC/UH
JESD-30 Code	R-PDSO-G16
JESD-609 Code	e0
Length	5 mm
Load Capacitance (CL)	50 pF
Logic IC Type	MONOSTABLE MULTIVIBRATOR
Moisture Sensitivity Level	1
Number of Data/Clock Inputs	2
Number of Functions	2
Number of Terminals	16
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output Polarity	COMPLEMENTARY
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP16,.25
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Peak Reflow Temperature (Cel)	260
Power Supplies	2/6 V
Propagation Delay (tpd)	60 ns
Qualification Status	Not Qualified
Seated Height-Max	1.2 mm
Sub Category	Prescaler/Multivibrators
Supply Voltage-Max (Vsup)	6 V
Supply Voltage-Min (Vsup)	2 V
Supply Voltage-Nom (Vsup)	4.5 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	MATTE TIN
Terminal Form	GULL WING
Terminal Pitch	0.65 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	40
Width	3.9 mm
