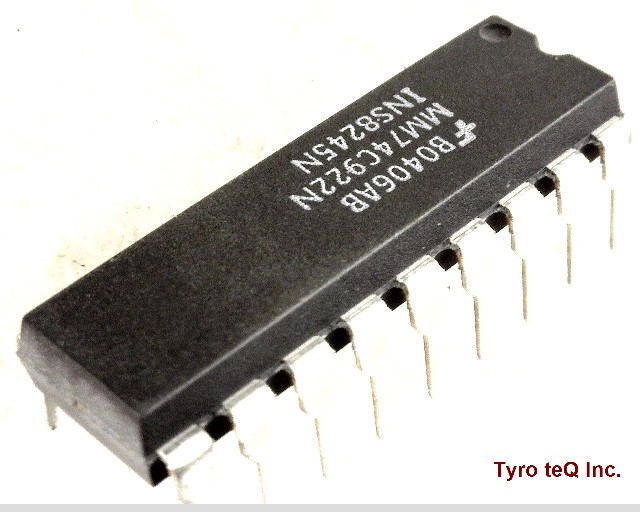

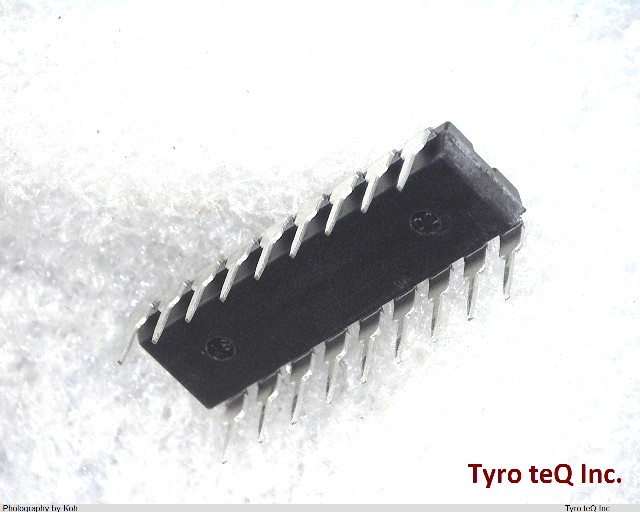

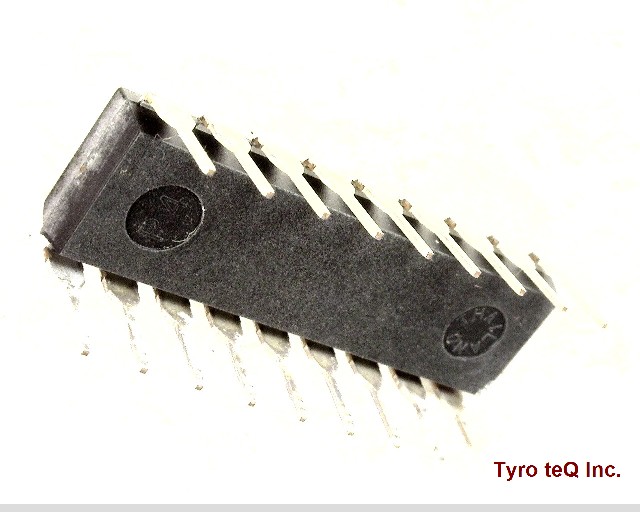

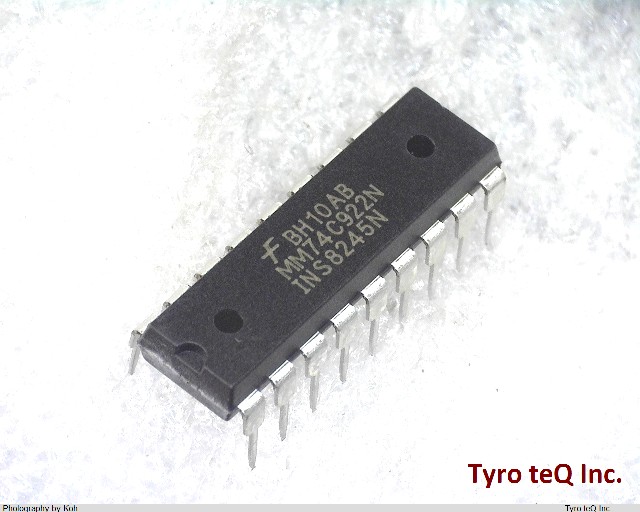

MM74C922N

Name: MM74C922N
Brand: FAIRCHILD
SKU: 230021418-0000-0000-0000

MM74C922N - FAIRCHILD の商品詳細ページです。

２営業日以内に回答いたします

CMOS標準ロジックIC | Monostable Multivibrator|パッケージ： Plastic Dual-In-Line Package (PDIP), JEDEC MS-001, 0.300 Wide | Lead free

MM74C922N の詳細情報

型番	MM74C922N
メーカー	FAIRCHILD
種別	CMOS標準ロジックIC \| Monostable Multivibrator
Additional Feature	16 KEY ENCODER
Family	74
JESD-30 Code	R-PDIP-T18
JESD-609 Code	e0
Length	21.78 mm
Load Capacitance (CL)	50 pF
Logic IC Type	ENCODER
Number of Bits	8
Number of Functions	1
Number of Terminals	18
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output Characteristics	3-STATE
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP18,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Power Supplies	5/15 V
Power Supply Current-Max (ICC)	2.6 mA
Propagation Delay (tpd)	150 ns
Qualification Status	Not Qualified
Seated Height-Max	3.48 mm
Sub Category	Arithmetic Circuits
Supply Voltage-Max (Vsup)	15 V
Supply Voltage-Min (Vsup)	3 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	NO
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	MATTE TIN
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Width	6.35 mm
