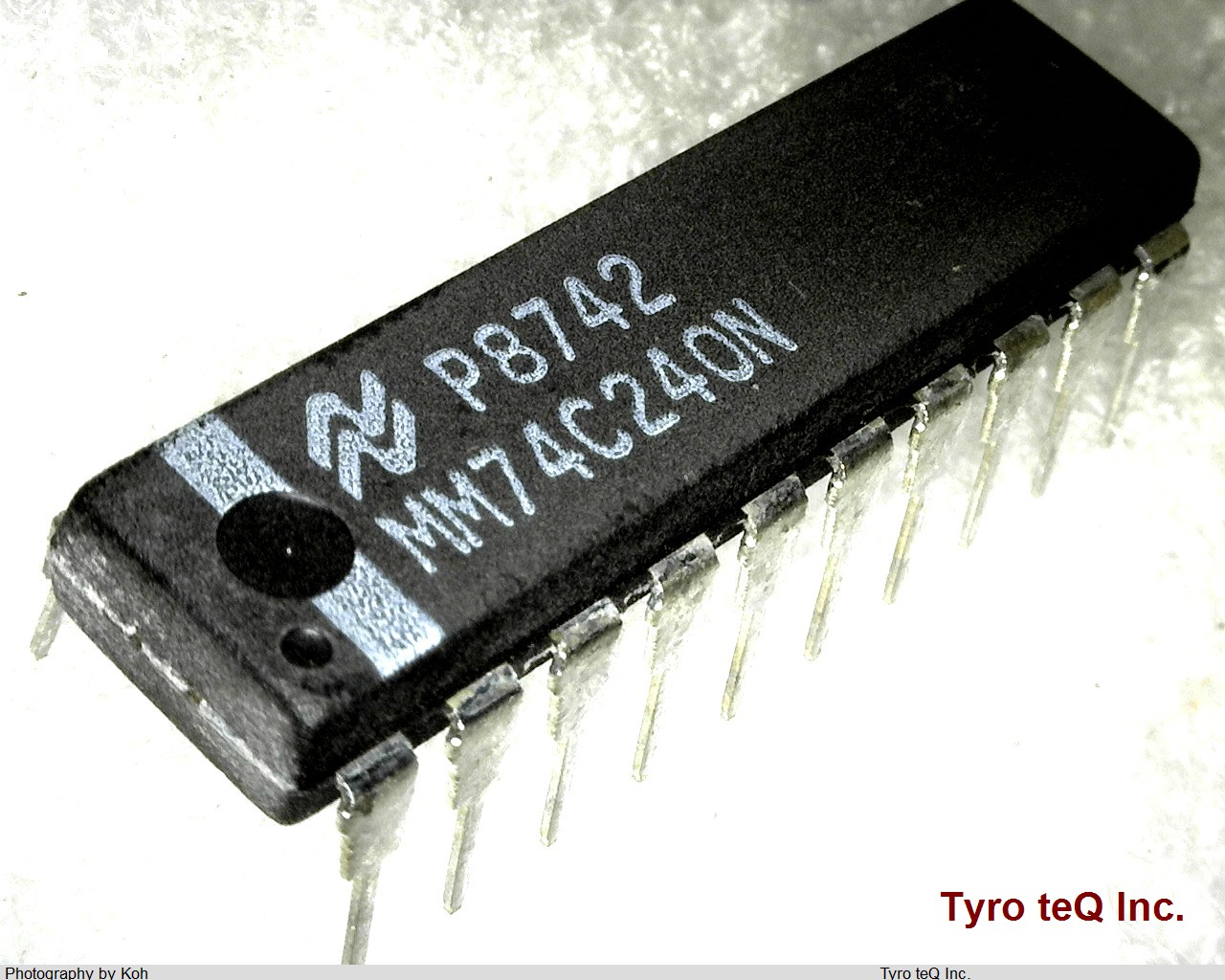

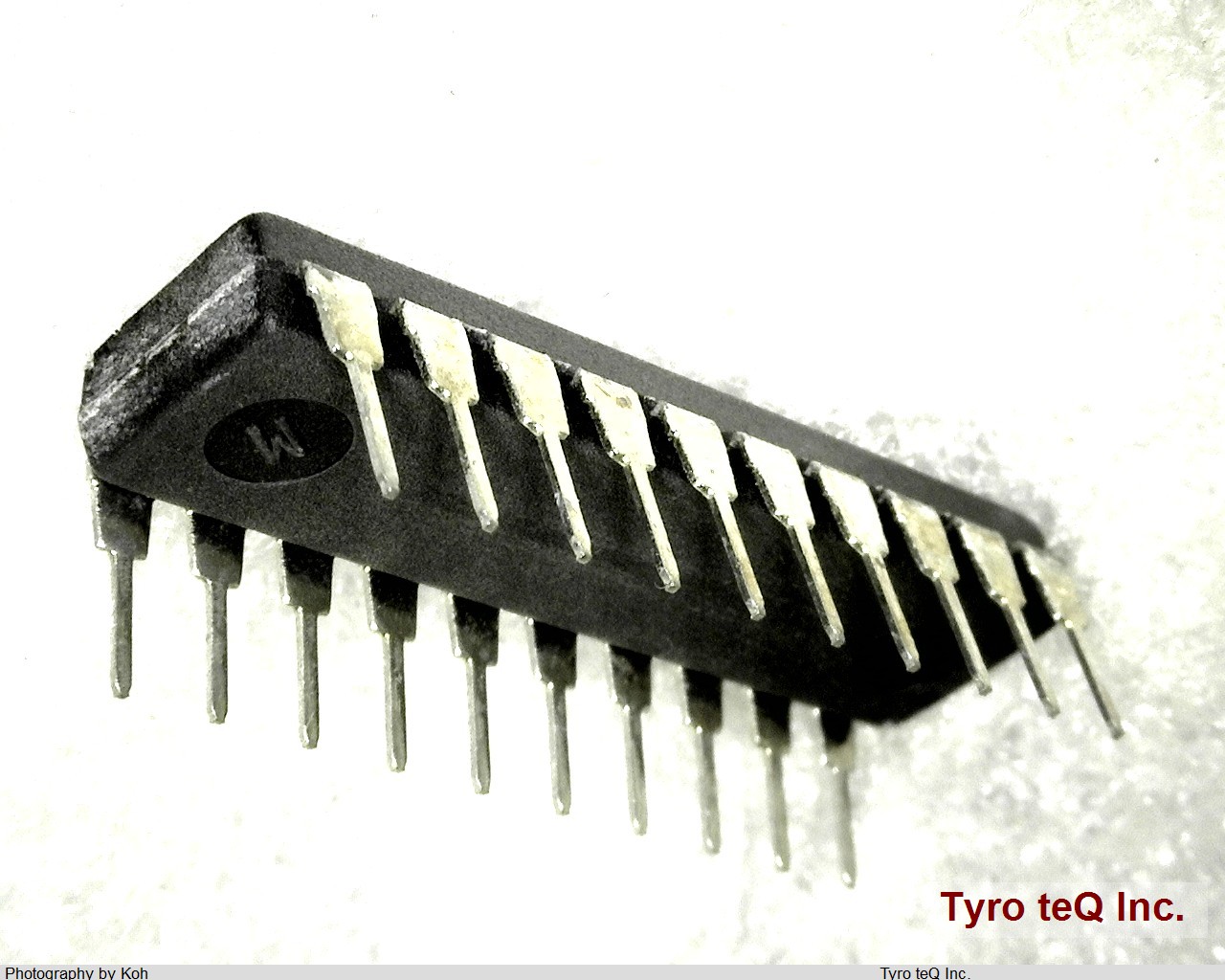

MM74C240N データシート

Name: MM74C240N
Brand: FAIRCHILD
SKU: 230021395-0000-0000-0000

MM74C240N - FAIRCHILD の商品詳細ページです。

No Image

２営業日以内に回答いたします

CMOS標準ロジックIC | Monostable Multivibrator|パッケージ： Plastic Dual-In-Line Package (PDIP), JEDEC MS-001, 0.300 Wide | Lead free

MM74C240N の詳細情報

型番	MM74C240N
メーカー	FAIRCHILD
種別	CMOS標準ロジックIC \| Monostable Multivibrator
データシート
Additional Feature	CMOS/TTL COMPATIBLE OUTPUTS WITH 5V OPERATION; IOH = 2.2MA @ VOH = 2.4V
Control Type	ENABLE LOW
Family	CMOS
JESD-30 Code	R-PDIP-T20
JESD-609 Code	e0
Length	26.075 mm
Load Capacitance (CL)	50 pF
Logic IC Type	BUS DRIVER
Max I(ol)	0.0022 Amp
Number of Bits	4
Number of Functions	2
Number of Ports	2
Number of Terminals	20
Operating Temperature-Max	70 Cel
Operating Temperature-Min	-55 Cel
Output Characteristics	3-STATE
Output Polarity	INVERTED
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP20,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Power Supplies	5/15 V
Prop. Delay@Nom-Sup	90 ns
Propagation Delay (tpd)	110 ns
Qualification Status	Not Qualified
Seated Height-Max	5.08 mm
Sub Category	Bus Driver/Transceivers
Supply Voltage-Max (Vsup)	15 V
Supply Voltage-Min (Vsup)	3 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	NO
Technology	CMOS
Temperature Grade	COMMERCIAL
Terminal Finish	MATTE TIN
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Width	7.62 mm
