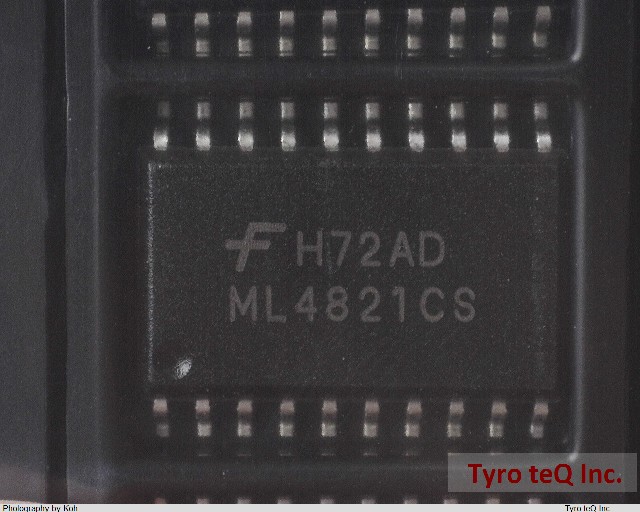

ML4821CS データシート

Name: ML4821CS
Brand: FAIRCHILD
SKU: 230020381-0000-0000-0000

ML4821CS - FAIRCHILD の商品詳細ページです。

２営業日以内に回答いたします

ML4821CS の詳細情報

型番	ML4821CS
メーカー	FAIRCHILD
データシート
Analog IC - Other Type	POWER FACTOR CONTROLLER
Control Mode	CURRENT-MODE
Control Technique	PULSE WIDTH MODULATION
Input Voltage-Max	24 V
Input Voltage-Min	12 V
Input Voltage-Nom	15 V
JESD-30 Code	R-PDSO-G20
JESD-609 Code	e0
Length	12.8 mm
Moisture Sensitivity Level	1
Number of Functions	1
Number of Terminals	20
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Output Current-Max	1 A
Output Voltage-Nom	5 V
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP20,.4
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Qualification Status	Not Qualified
Seated Height-Max	2.72 mm
Sub Category	Switching Regulator or Controllers
Supply Current-Max (Isup)	32 mA
Surface Mount	YES
Switcher Configuration	BOOST
Switching Frequency-Max	115 kHz
Technology	BIPOLAR
Temperature Grade	COMMERCIAL
Terminal Finish	MATTE TIN
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Width	7.52 mm
