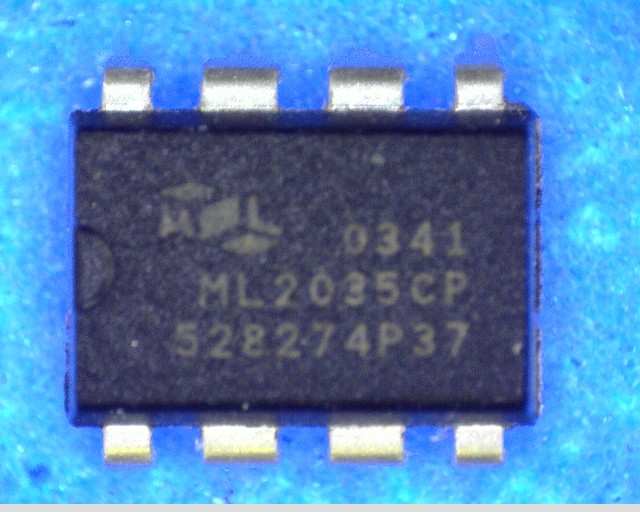

ML2035CP データシート

Name: ML2035CP
Brand: FAIRCHILD
SKU: 230026225-0000-0000-0000

ML2035CP - FAIRCHILD の商品詳細ページです。

２営業日以内に回答いたします

ML2035CP の詳細情報

型番	ML2035CP
メーカー	FAIRCHILD
データシート
Additional Feature	ALSO REQUIRES -5V SUPPLY
Boundary Scan	NO
Clock Frequency-Max	12.352 MHz
External Data Bus Width	1
JESD-30 Code	R-PDIP-T8
JESD-609 Code	e0
Length	9.52 mm
Low Power Mode	YES
Neg Supply Voltage-Nom	-5 V
Number of Terminals	8
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Output Data Bus Width	1
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Qualification Status	Not Qualified
Seated Height-Max	4.32 mm
Supply Current-Max	5.5 mA
Supply Voltage-Max	5.5 V
Supply Voltage-Min	4.5 V
Supply Voltage-Nom	5 V
Surface Mount	NO
Technology	CMOS
Temperature Grade	COMMERCIAL
Terminal Finish	Tin/Lead (Sn/Pb)
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Width	7.62 mm
uPs/uCs/Peripheral ICs Type	DSP PERIPHERAL, NUMERIC CONTROLLED OSCILLATOR
