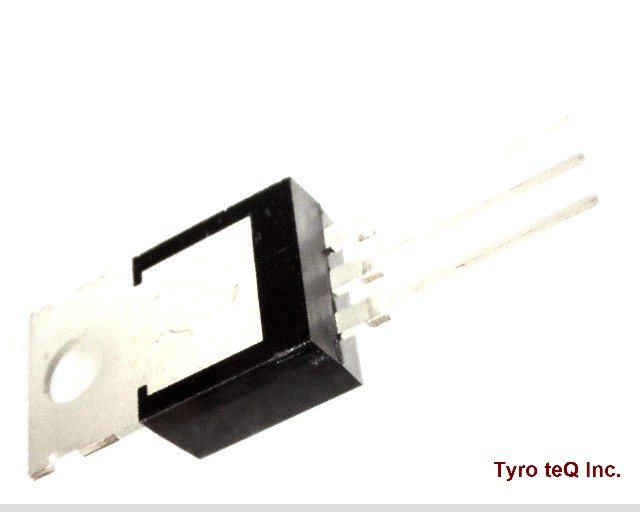

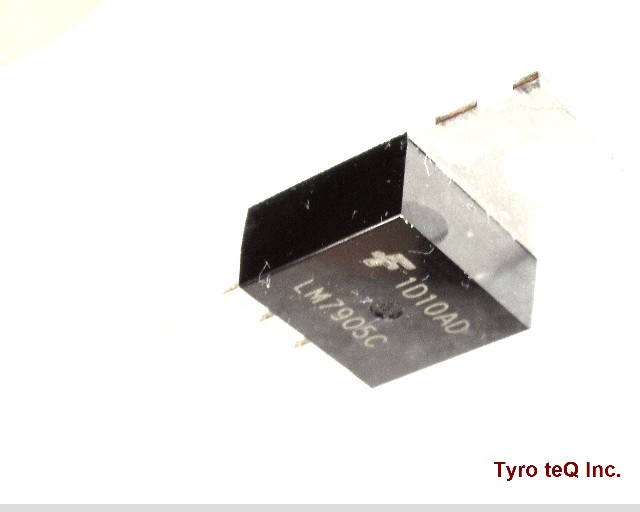

LM7905CT データシート

Name: LM7905CT
Brand: FAIRCHILD
SKU: 220006507-0000-0000-0000

LM7905CT - FAIRCHILD の商品詳細ページです。

２営業日以内に回答いたします

LM7905CT の詳細情報

型番	LM7905CT
メーカー	FAIRCHILD
データシート
Adjustability	FIXED
Dropout Voltage1-Nom	1.1 V
Input Voltage Absolute-Max	25 V
Input Voltage-Max	25 V
Input Voltage-Min	7 V
JESD-30 Code	R-PSFM-T3
JESD-609 Code	e0
Length	14.986 mm
Line Regulation-Max	0.015 %
Load Regulation-Max	0.1 %
Moisture Sensitivity Level	1
Number of Functions	1
Number of Outputs	1
Number of Terminals	3
Operating Temperature, TJ-Max	125 Cel
Operating Temperature, TJ-Min	0 Cel
Output Current1-Max	1 A
Output Voltage1-Max	5.25 V
Output Voltage1-Min	4.75 V
Output Voltage1-Nom	-5 V
Package Body Material	PLASTIC/EPOXY
Package Code	SFM
Package Equivalence Code	SIP3,.1TB
Package Shape	RECTANGULAR
Package Style	FLANGE MOUNT Meter
Packing Method	RAIL
Peak Reflow Temperature (Cel)	260
Qualification Status	Not Qualified
Regulator Type	FIXED NEGATIVE SINGLE OUTPUT STANDARD REGULATOR
Seated Height-Max	4.7 mm
Sub Category	Other Regulators
Surface Mount	NO
Technology	BIPOLAR
Terminal Finish	MATTE TIN
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	SINGLE
Time@Peak Reflow Temperature-Max (s)	40
Voltage Tolerance-Max	5 %
Width	10.16 mm
