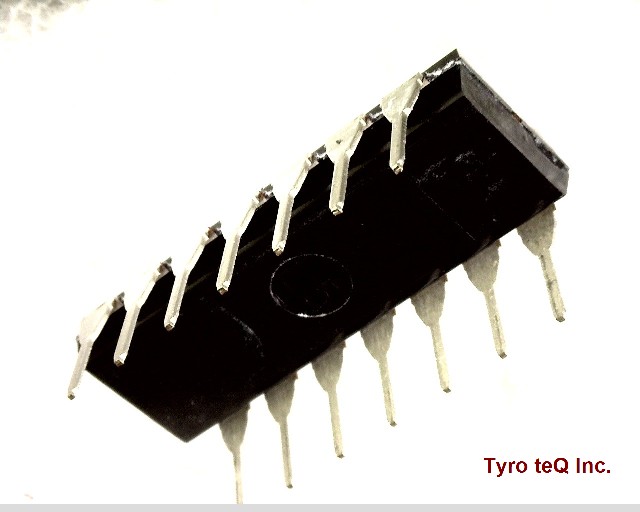

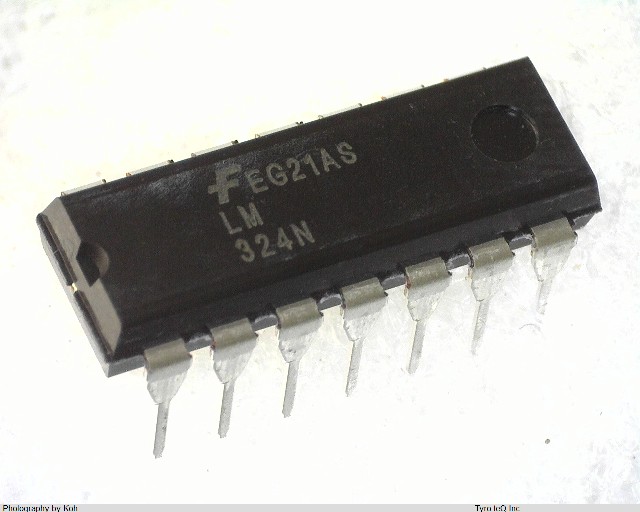

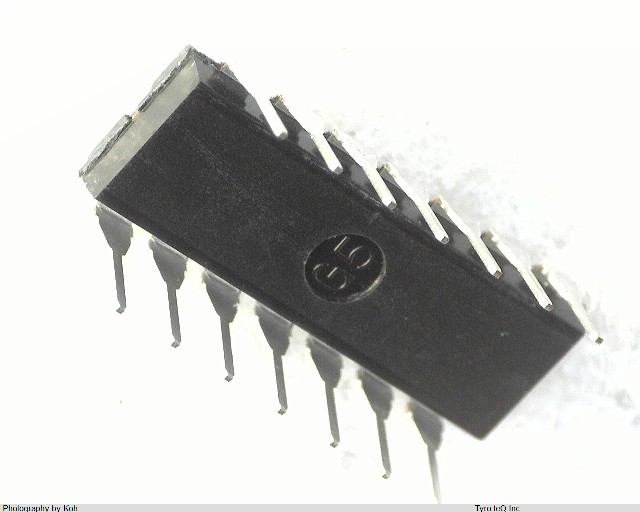

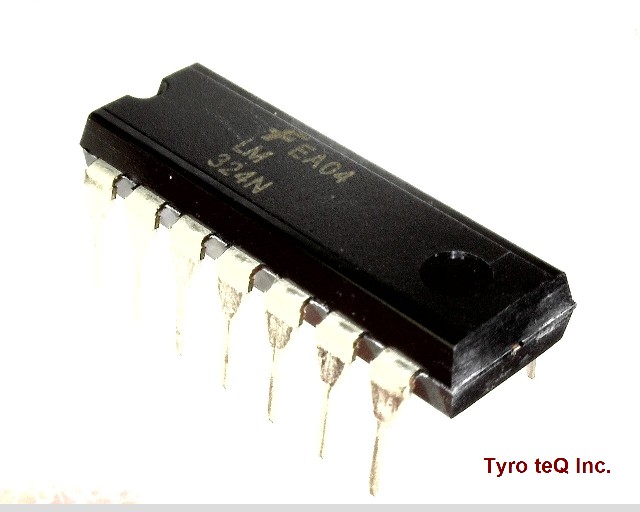

LM324N
1
-
- 個
２営業日以内に回答いたします
LM324N の詳細情報
- 仕様・詳細
- メーカー情報
| 型番 | LM324N |
|---|---|
| メーカー | FAIRCHILD |
| Amplifier Type | OPERATIONAL AMPLIFIER |
| Architecture | VOLTAGE-FEEDBACK |
| Average Bias Current-Max (IIB) | -0.5 uA |
| Bias Current-Max (IIB) @25C | 0.15 uA |
| Common-mode Reject Ratio-Min | 65 dB |
| Common-mode Reject Ratio-Nom | 70 dB |
| Frequency Compensation | YES |
| Input Offset Current-Max (IIO) | 0.05 uA |
| Input Offset Voltage-Max | 7000 uV |
| JESD-30 Code | R-PDIP-T14 |
| JESD-609 Code | e0 |
| Length | 10.2 mm |
| Low-Bias | NO |
| Low-Offset | NO |
| Micropower | YES |
| Moisture Sensitivity Level | 1 |
| Neg Supply Voltage Limit-Max | -18 V |
| Number of Functions | 4 |
| Number of Terminals | 14 |
| Operating Temperature-Max | 70 Cel |
| Operating Temperature-Min | -25 Cel |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | DIP |
| Package Equivalence Code | DIP14,.3 |
| Package Shape | RECTANGULAR |
| Package Style | IN-LINE Meter |
| Packing Method | RAIL |
| Peak Reflow Temperature (Cel) | 225 |
| Power | NO |
| Power Supplies | +-1.5/+-15/3/30 V |
| Programmable Power | NO |
| Qualification Status | Not Qualified |
| Seated Height-Max | 2 mm |
| Slew Rate-Nom | 0.3 V/us |
| Sub Category | Operational Amplifier |
| Supply Current-Max | 1.2 mA |
| Supply Voltage Limit-Max | 16 V |
| Supply Voltage-Nom (Vsup) | 5 V |
| Surface Mount | NO |
| Technology | BIPOLAR |
| Temperature Grade | COMMERCIAL |
| Terminal Finish | MATTE TIN |
| Terminal Form | GULL WING |
| Terminal Pitch | 1.27 mm |
| Terminal Position | DUAL |
| Time@Peak Reflow Temperature-Max (s) | 30 |
| Unity Gain BW-Nom | 1000 kHz |
| Voltage Gain-Min | 15000 |
| Wideband | NO |
| Width | 5.3 mm |
| 会社名称 | Fairchild Semiconductor Corporation |
|---|---|
| 設立 | 1957 |
| 所在地 | 3030 Orchard Parkway San Jose, CA 95134 United States |
| URL | http://www.fairchildsemi.com/ |
LM324Nのレビュー
LM324N のご注文について
050-3612-7934
045-263-9989
LM324N - FAIRCHILD の商品詳細ページです。
