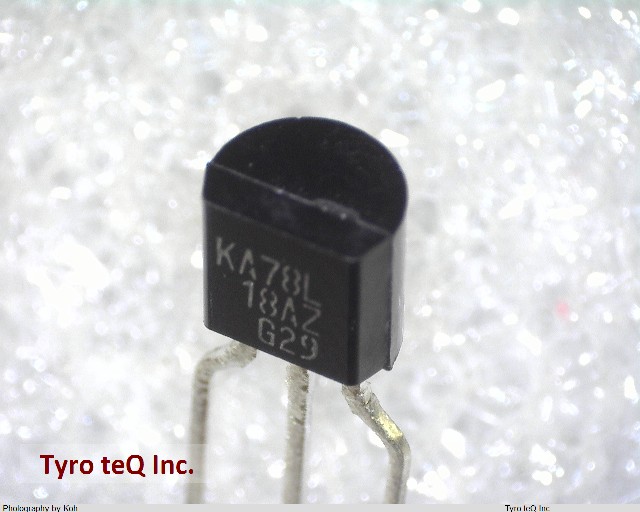

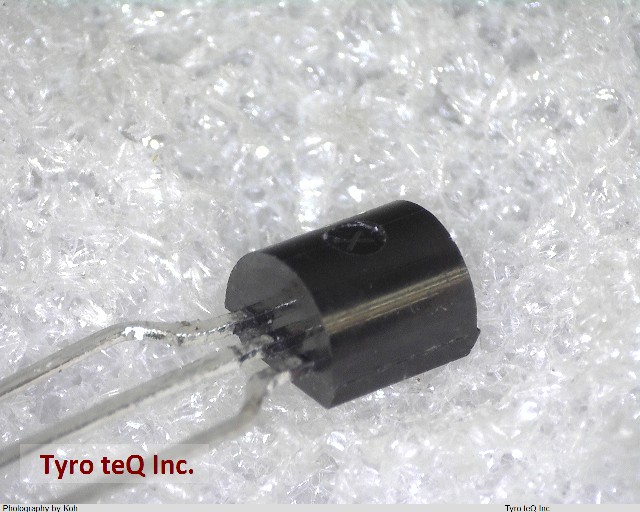

KA78L18AZTA データシート

Name: KA78L18AZTA
Brand: FAIRCHILD
SKU: 210013371-0000-0000-0000

KA78L18AZTA - FAIRCHILD の商品詳細ページです。

２営業日以内に回答いたします

KA78L18AZTA の詳細情報

型番	KA78L18AZTA
メーカー	FAIRCHILD
データシート
Adjustability	FIXED
Dropout Voltage1-Nom	1.7 V
Input Voltage Absolute-Max	35 V
Input Voltage-Max	33 V
Input Voltage-Min	21 V
JESD-30 Code	O-PBCY-W3
JESD-609 Code	e3
Line Regulation-Max	0.3 %
Load Regulation-Max	0.17 %
Number of Functions	1
Number of Outputs	1
Number of Terminals	3
Operating Temperature, TJ-Max	125 Cel
Operating Temperature, TJ-Min	0 Cel
Output Current1-Max	0.1 A
Output Voltage1-Max	18.9 V
Output Voltage1-Min	17.1 V
Output Voltage1-Nom	18 V
Package Body Material	PLASTIC/EPOXY
Package Equivalence Code	SIP3,.1,50
Package Shape	ROUND
Package Style	CYLINDRICAL Meter
Packing Method	AMMO PACK
Qualification Status	Not Qualified
Regulator Type	FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR
Sub Category	Other Regulators
Surface Mount	NO
Technology	BIPOLAR
Terminal Finish	MATTE TIN
Terminal Form	WIRE
Terminal Pitch	1.27 mm
Terminal Position	BOTTOM
Voltage Tolerance-Max	5 %
