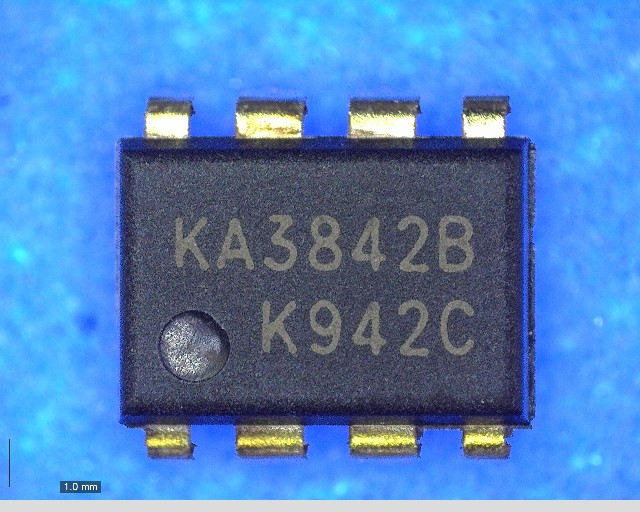

KA3842B
データシート
1
-
- 個
２営業日以内に回答いたします
KA3842B の詳細情報
- 仕様・詳細
- メーカー情報
| 型番 | KA3842B |
|---|---|
| メーカー | FAIRCHILD |
| データシート |  |
| Analog IC - Other Type | SWITCHING CONTROLLER |
| Control Mode | CURRENT-MODE |
| Control Technique | PULSE WIDTH MODULATION |
| Input Voltage-Max | 25 V |
| Input Voltage-Min | 11.5 V |
| Input Voltage-Nom | 15 V |
| JESD-30 Code | R-PDIP-T8 |
| JESD-609 Code | e0 |
| Length | 8.56 mm |
| Moisture Sensitivity Level | 1 |
| Number of Functions | 1 |
| Number of Terminals | 8 |
| Operating Temperature-Max | 70 Cel |
| Operating Temperature-Min | 0 Cel |
| Output Current-Max | 1 A |
| Output Voltage-Nom | 2.5 V |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | DIP |
| Package Equivalence Code | DIP8,.3 |
| Package Shape | RECTANGULAR |
| Package Style | IN-LINE Meter |
| Peak Reflow Temperature (Cel) | 260 |
| Qualification Status | Not Qualified |
| Seated Height-Max | 1.8 mm |
| Sub Category | Switching Regulator or Controllers |
| Supply Current-Max (Isup) | 17 mA |
| Surface Mount | NO |
| Switcher Configuration | SINGLE |
| Switching Frequency-Max | 500 kHz |
| Technology | BIPOLAR |
| Temperature Grade | COMMERCIAL |
| Terminal Finish | MATTE TIN |
| Terminal Form | GULL WING |
| Terminal Pitch | 1.27 mm |
| Terminal Position | DUAL |
| Time@Peak Reflow Temperature-Max (s) | 30 |
| Width | 3.95 mm |
| 会社名称 | Fairchild Semiconductor Corporation |
|---|---|
| 設立 | 1957 |
| 所在地 | 3030 Orchard Parkway San Jose, CA 95134 United States |
| URL | http://www.fairchildsemi.com/ |
