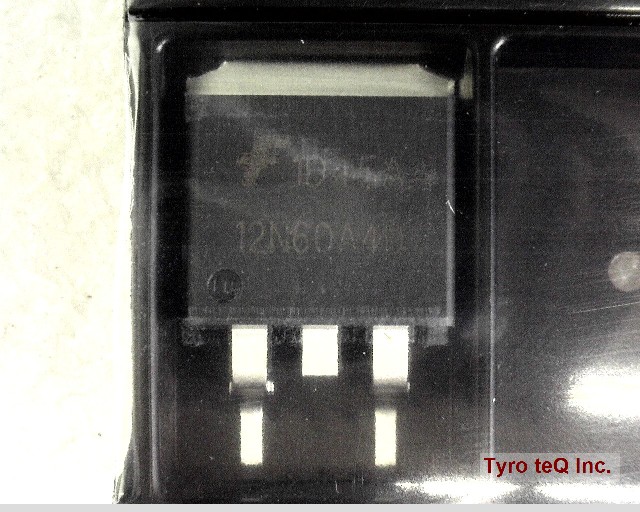

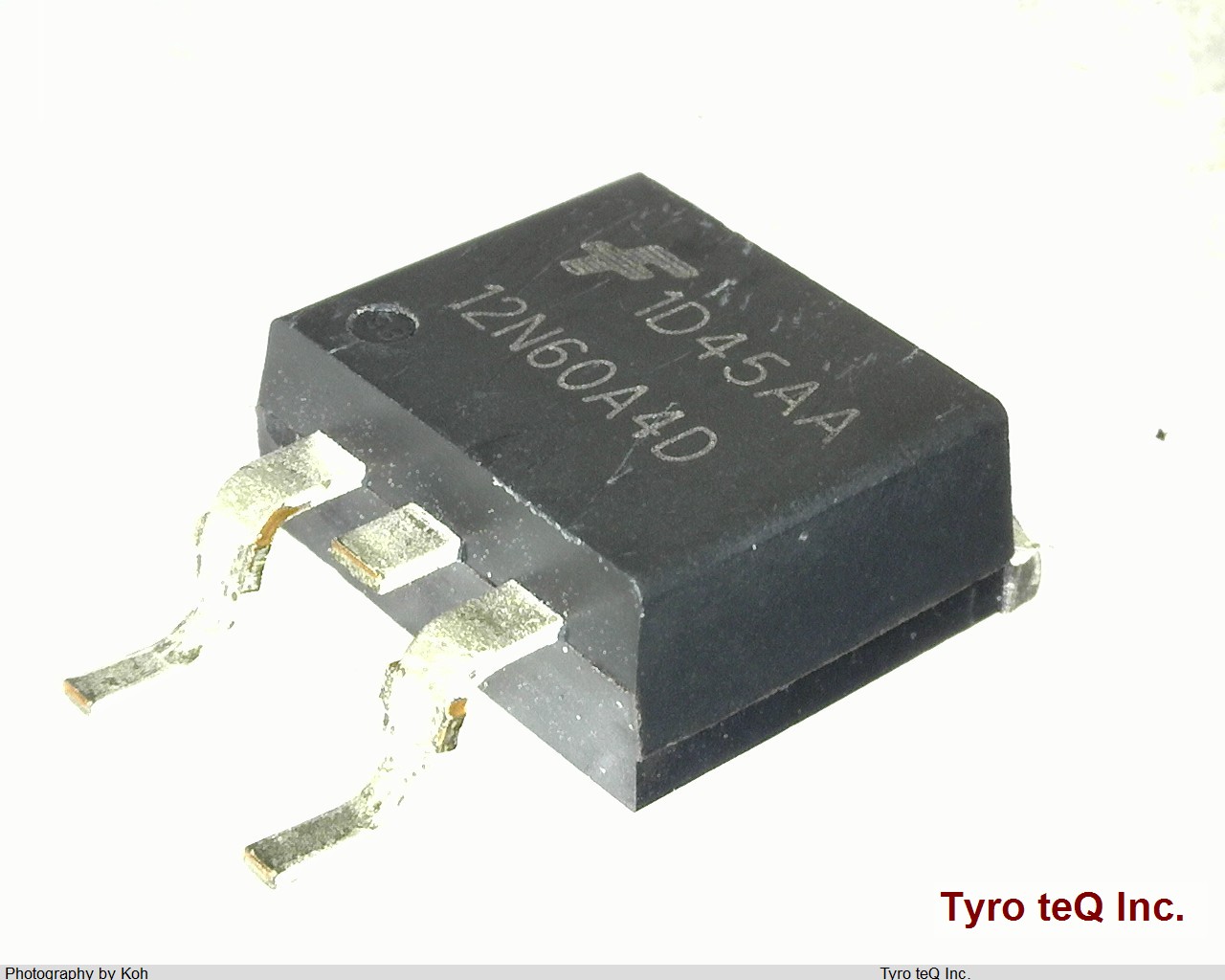

HGT1S12N60A4DS データシート

Name: HGT1S12N60A4DS
Brand: FAIRCHILD
SKU: 180004845-0000-0000-0000

HGT1S12N60A4DS - FAIRCHILD の商品詳細ページです。

２営業日以内に回答いたします

HGT1S12N60A4DS の詳細情報

型番	HGT1S12N60A4DS
メーカー	FAIRCHILD
データシート
Additional Feature	LOW CONDUCTION LOSS
Case Connection	COLLECTOR
Collector Current-Max (IC)	54 A
Collector-emitter Voltage-Max	600 V
Configuration	SINGLE WITH BUILT-IN DIODE
Fall Time-Max (tf)	18 ns
Gate-emitter Thr Voltage-Max	5.6 V
Gate-emitter Voltage-Max	20 V
JEDEC-95 Code	TO-263AB
JESD-30 Code	R-PSSO-G2
JESD-609 Code	e0
Moisture Sensitivity Level	1
Number of Elements	1
Number of Terminals	2
Operating Temperature-Max	150 Cel
Operating Temperature-Min	-55 Cel
Package Body Material	PLASTIC/EPOXY
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Peak Reflow Temperature (Cel)	260
Polarity/Channel Type	N-CHANNEL
Power Dissipation-Max (Abs)	167 W
Qualification Status	Not Qualified
Rise Time-Max (tr)	8 ns
Sub Category	Insulated Gate BIP Transistors
Surface Mount	YES
Terminal Finish	MATTE TIN
Terminal Form	GULL WING
Terminal Position	SINGLE
Time@Peak Reflow Temperature-Max (s)	30
Transistor Application	MOTOR CONTROL
Transistor Element Material	SILICON
Turn-off Time-Max (toff)	265 ns
Turn-off Time-Nom (toff)	180 ns
Turn-on Time-Nom (ton)	33 ns
VCEsat-Max	2.7 V
