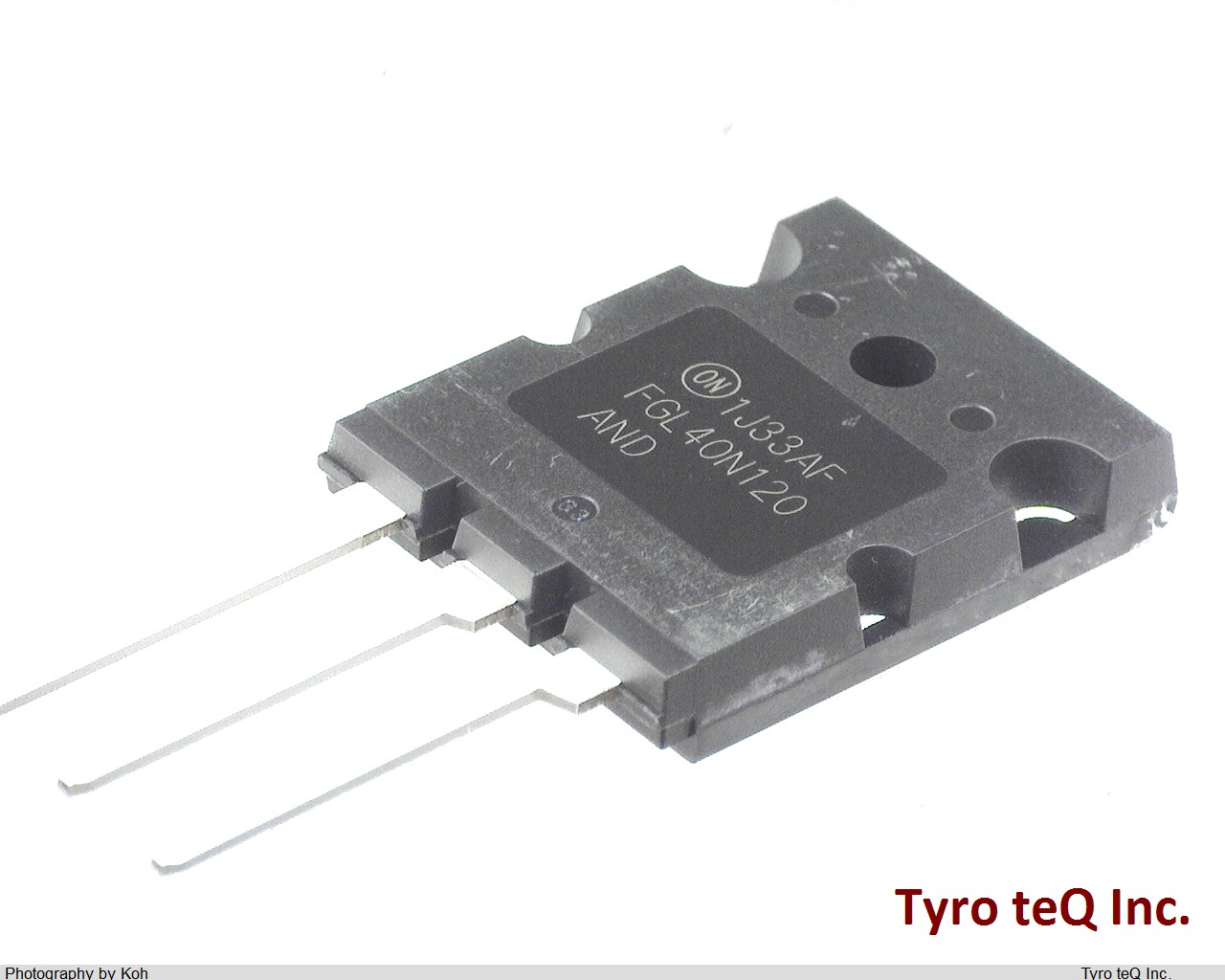

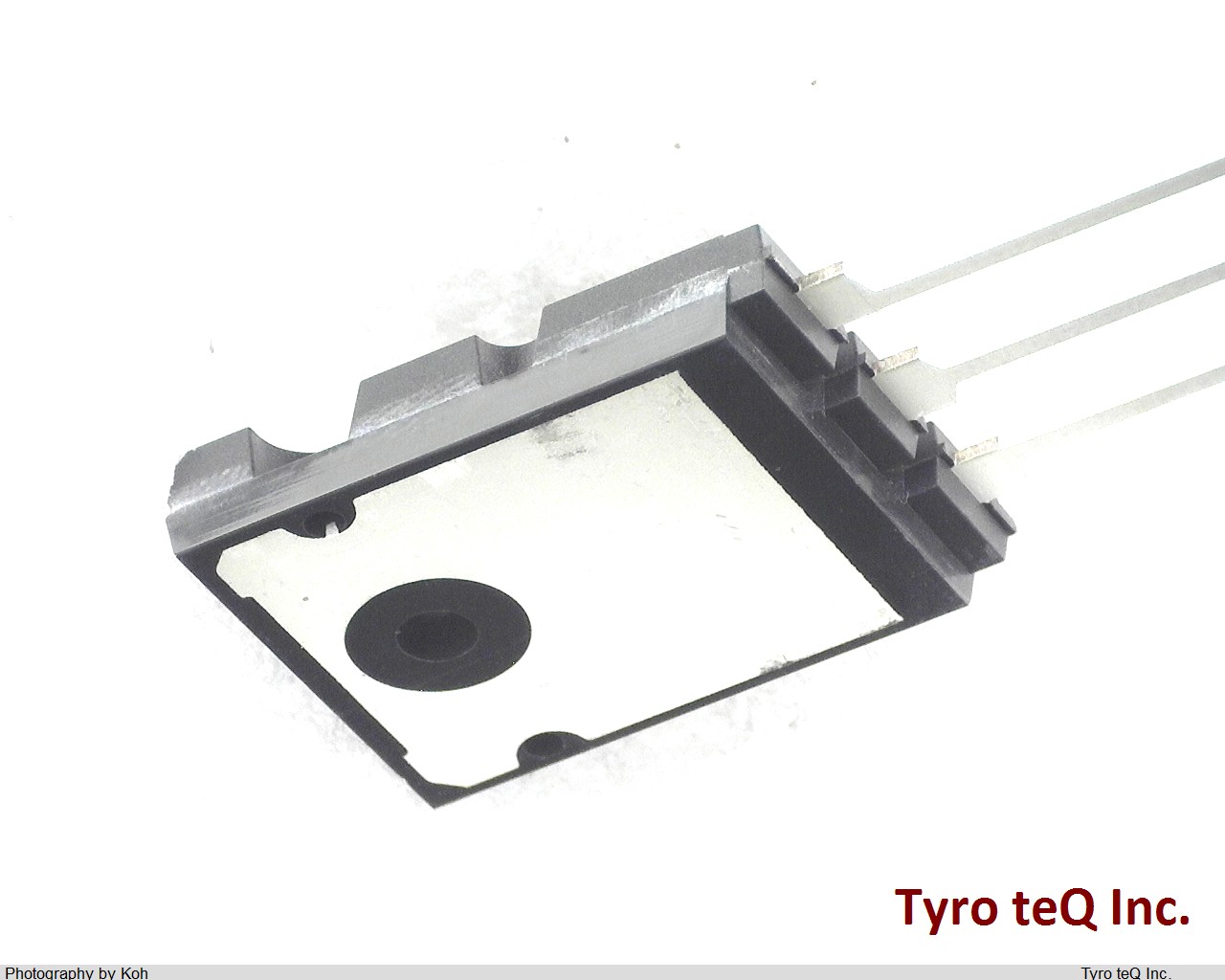

FGL40N120AND
1
-
- 個
２営業日以内に回答いたします
FGL40N120AND の詳細情報
- 仕様・詳細
- メーカー情報
| 型番 | FGL40N120AND |
|---|---|
| メーカー | FAIRCHILD |
| Additional Feature | LOW CONDUCTION LOSS |
| Collector Current-Max (IC) | 64 A |
| Collector-emitter Voltage-Max | 1200 V |
| Configuration | SINGLE WITH BUILT-IN DIODE |
| Fall Time-Max (tf) | 80 ns |
| Gate-emitter Thr Voltage-Max | 7.5 V |
| Gate-emitter Voltage-Max | 25 V |
| JEDEC-95 Code | TO-264 |
| JESD-30 Code | R-PSFM-T3 |
| JESD-609 Code | e3 |
| Number of Elements | 1 |
| Number of Terminals | 3 |
| Operating Temperature-Max | 150 Cel |
| Operating Temperature-Min | -55 Cel |
| Package Body Material | PLASTIC/EPOXY |
| Package Shape | RECTANGULAR |
| Package Style | FLANGE MOUNT Meter |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED |
| Polarity/Channel Type | N-CHANNEL |
| Power Dissipation-Max (Abs) | 500 W |
| Qualification Status | Not Qualified |
| Sub Category | Insulated Gate BIP Transistors |
| Surface Mount | NO |
| Terminal Finish | MATTE TIN |
| Terminal Form | THROUGH-HOLE |
| Terminal Position | SINGLE |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED |
| Transistor Application | MOTOR CONTROL |
| Transistor Element Material | SILICON |
| Turn-off Time-Nom (toff) | 165 ns |
| Turn-on Time-Nom (ton) | 45 ns |
| VCEsat-Max | 3.2 V |
| 会社名称 | Fairchild Semiconductor Corporation |
|---|---|
| 設立 | 1957 |
| 所在地 | 3030 Orchard Parkway San Jose, CA 95134 United States |
| URL | http://www.fairchildsemi.com/ |
