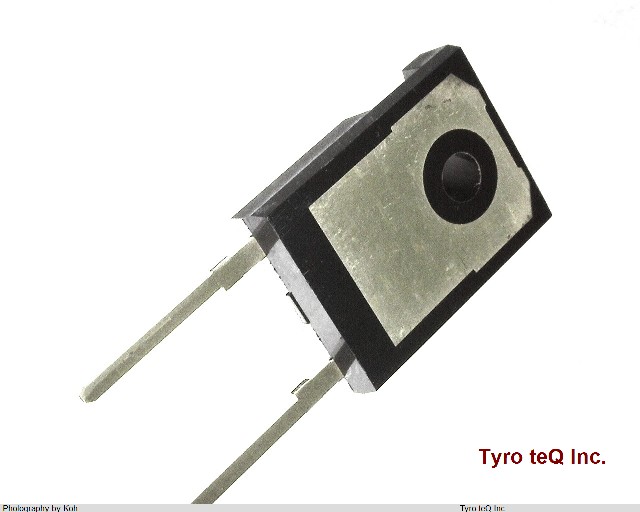

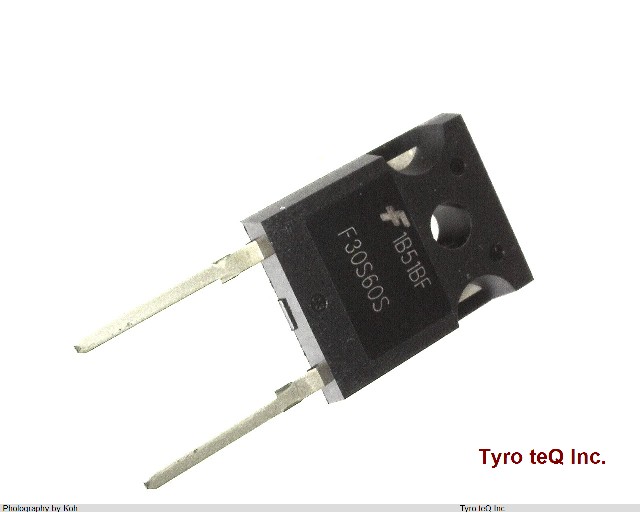

FFH30S60STU データシート

Name: FFH30S60STU
Brand: FAIRCHILD
SKU: 160022811-0000-0000-0000

FFH30S60STU - FAIRCHILD の商品詳細ページです。

２営業日以内に回答いたします

FFH30S60STU の詳細情報

型番	FFH30S60STU
メーカー	FAIRCHILD
データシート
Additional Feature	FREE WHEELING DIODE, HIGH RELIABILITY
Application	HYPERFAST SOFT RECOVERY
Configuration	SINGLE
Diode Element Material	SILICON
Diode Type	RECTIFIER DIODE
Forward Voltage-Max (VF)	2.6 V
JESD-30 Code	R-PSFM-T2
JESD-609 Code	e3
Non-rep Pk Forward Current-Max	300 A
Number of Elements	1
Number of Phases	1
Number of Terminals	2
Operating Temperature-Max	150 Cel
Operating Temperature-Min	-65 Cel
Output Current-Max	30 A
Package Body Material	PLASTIC/EPOXY
Package Shape	RECTANGULAR
Package Style	FLANGE MOUNT Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Qualification Status	Not Qualified
Rep Pk Reverse Voltage-Max	600 V
Reverse Recovery Time-Max	0.04 us
Sub Category	Rectifier Diodes
Surface Mount	NO
Terminal Finish	MATTE TIN
Terminal Form	THROUGH-HOLE
Terminal Position	SINGLE
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
