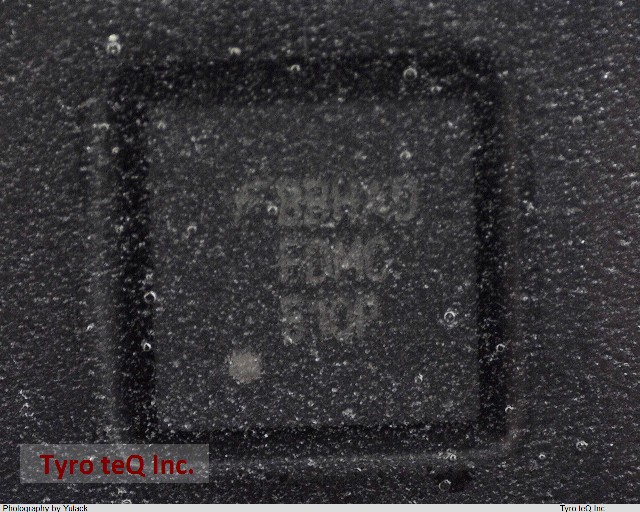

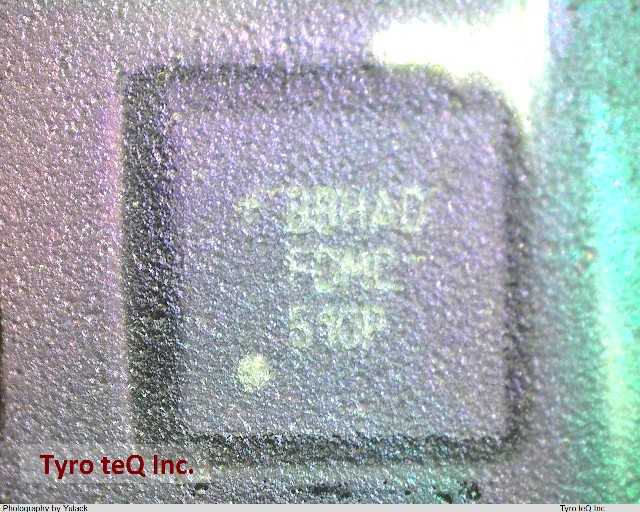

FDMC510P データシート

Name: FDMC510P
Brand: FAIRCHILD
SKU: 160080263-0000-0000-0000

FDMC510P - FAIRCHILD の商品詳細ページです。

２営業日以内に回答いたします

FDMC510P の詳細情報

型番	FDMC510P
メーカー	FAIRCHILD
データシート
Avalanche Energy Rating (Eas)	37 mJ
Case Connection	DRAIN
Configuration	SINGLE WITH BUILT-IN DIODE
DS Breakdown Voltage-Min	20 V
Drain Current-Max (Abs) (ID)	18 A
Drain Current-Max (ID)	12 A
Drain-source On Resistance-Max	0.008 ohm
FET Technology	METAL-OXIDE SEMICONDUCTOR
Feedback Cap-Max (Crss)	1110 pF
JESD-30 Code	S-PDSO-N5
JESD-609 Code	e4
Moisture Sensitivity Level	1
Number of Elements	1
Number of Terminals	5
Operating Mode	ENHANCEMENT MODE
Operating Temperature-Max	150 Cel
Operating Temperature-Min	-55 Cel
Package Body Material	PLASTIC/EPOXY
Package Shape	SQUARE
Package Style	SMALL OUTLINE Meter
Peak Reflow Temperature (Cel)	260
Polarity/Channel Type	P-CHANNEL
Power Dissipation-Max (Abs)	41 W
Pulsed Drain Current-Max (IDM)	50 A
Qualification Status	Not Qualified
Sub Category	Other Transistors
Surface Mount	YES
Terminal Finish	NICKEL PALLADIUM GOLD
Terminal Form	NO LEAD
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Transistor Application	SWITCHING
Transistor Element Material	SILICON
Turn-off Time-Max (toff)	812 ns
Turn-on Time-Max (ton)	82 ns
