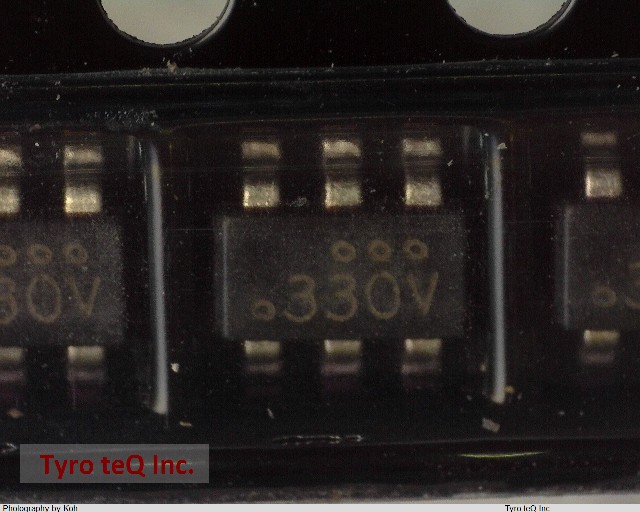

FDC6330L データシート

Name: FDC6330L
Brand: FAIRCHILD
SKU: 160006750-0000-0000-0000

FDC6330L - FAIRCHILD の商品詳細ページです。

２営業日以内に回答いたします

FDC6330L の詳細情報

型番	FDC6330L
メーカー	FAIRCHILD
データシート
Built-in Protections	TRANSIENT
Driver Number of Bits	1
Interface IC Type	BUFFER OR INVERTER BASED PERIPHERAL DRIVER
JESD-30 Code	R-PDSO-G6
JESD-609 Code	e3
Length	2.92 mm
Moisture Sensitivity Level	1
Number of Functions	1
Number of Terminals	6
Operating Temperature-Max	150 Cel
Operating Temperature-Min	-55 Cel
Output Characteristics	OPEN-DRAIN
Output Current Flow Direction	SOURCE
Output Current-Max	2.3 A
Output Peak Current Limit-Nom	1.6 A
Package Body Material	PLASTIC/EPOXY
Package Code	LSSOP
Package Equivalence Code	TSOP6,.11,37
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH Meter
Peak Reflow Temperature (Cel)	260
Power Supplies	5/20 V
Qualification Status	Not Qualified
Seated Height-Max	1.22 mm
Sub Category	Peripheral Drivers
Surface Mount	YES
Technology	CMOS
Temperature Grade	MILITARY
Terminal Finish	MATTE TIN
Terminal Form	GULL WING
Terminal Pitch	0.95 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Width	1.6 mm
