FCPF11N60NT データシート

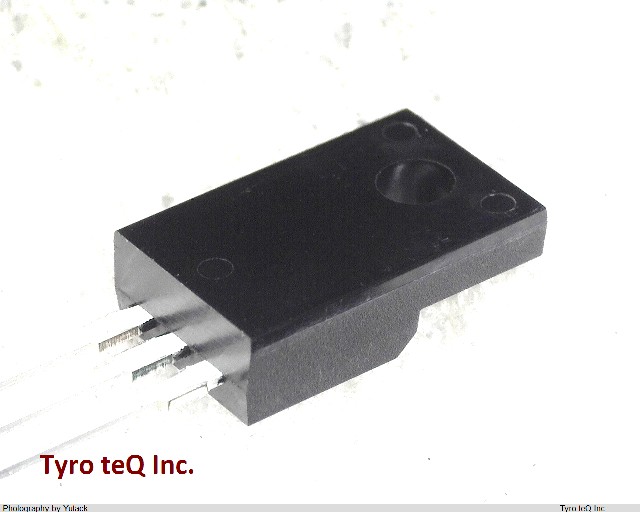

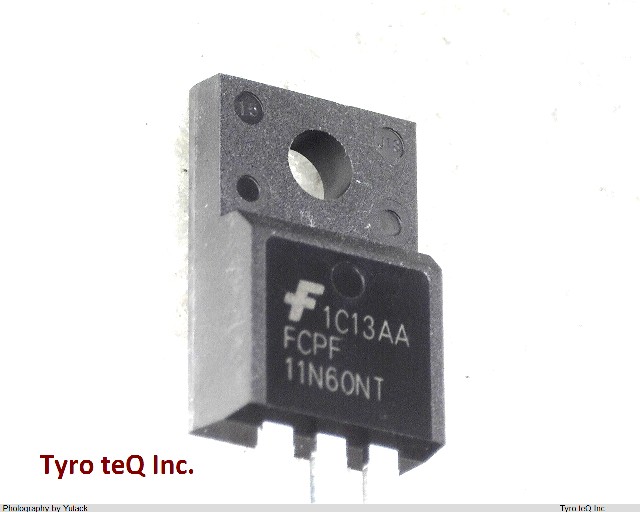

Name: FCPF11N60NT
Brand: FAIRCHILD
SKU: 160078139-0000-0000-0000

FCPF11N60NT - FAIRCHILD の商品詳細ページです。

２営業日以内に回答いたします

FCPF11N60NT の詳細情報

型番	FCPF11N60NT
メーカー	FAIRCHILD
データシート
Avalanche Energy Rating (Eas)	201.7 mJ
Case Connection	ISOLATED
Configuration	SINGLE
DS Breakdown Voltage-Min	600 V
Drain Current-Max (Abs) (ID)	10.8 A
Drain Current-Max (ID)	10.8 A
Drain-source On Resistance-Max	0.299 ohm
FET Technology	METAL-OXIDE SEMICONDUCTOR
JEDEC-95 Code	TO-220AB
JESD-30 Code	R-PSFM-T3
JESD-609 Code	e3
Number of Elements	1
Number of Terminals	3
Operating Mode	ENHANCEMENT MODE
Operating Temperature-Max	150 Cel
Package Body Material	PLASTIC/EPOXY
Package Shape	RECTANGULAR
Package Style	FLANGE MOUNT Meter
Polarity/Channel Type	N-CHANNEL
Power Dissipation-Max (Abs)	32.1 W
Pulsed Drain Current-Max (IDM)	32.4 A
Qualification Status	Not Qualified
Sub Category	FET General Purpose Power
Surface Mount	NO
Terminal Finish	MATTE TIN
Terminal Form	THROUGH-HOLE
Terminal Position	SINGLE
Transistor Application	SWITCHING
Transistor Element Material	SILICON

会社名称	Fairchild Semiconductor Corporation
設立	1957
所在地	3030 Orchard Parkway San Jose, CA 95134 United States
URL	http://www.fairchildsemi.com/
