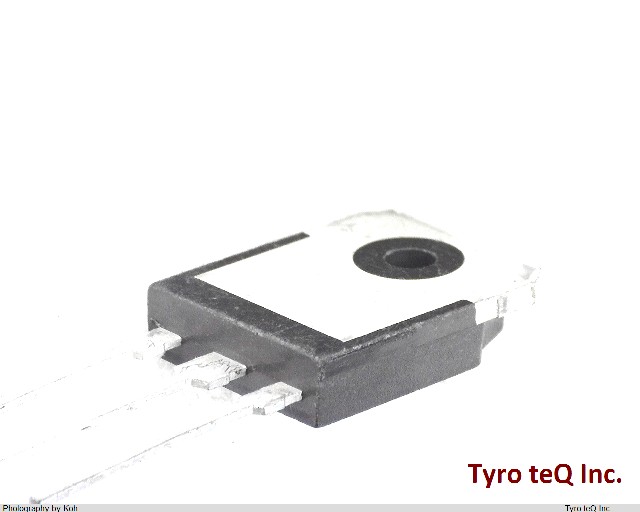

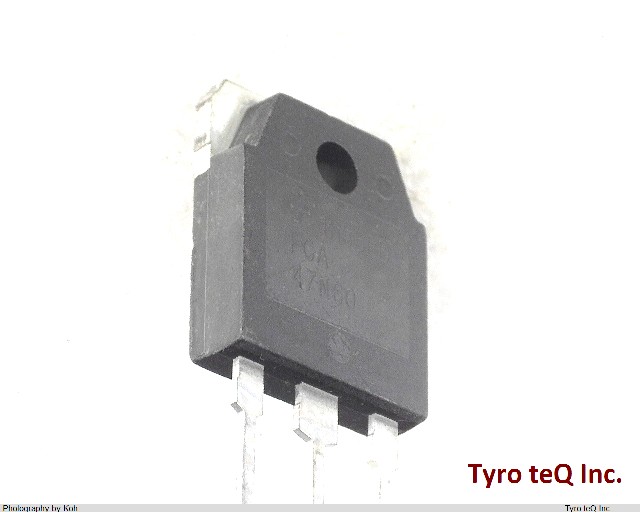

FCA47N60 データシート

Name: FCA47N60
Brand: FAIRCHILD
SKU: 160000711-0000-0000-0000

FCA47N60 - FAIRCHILD の商品詳細ページです。

２営業日以内に回答いたします

FCA47N60 の詳細情報

型番	FCA47N60
メーカー	FAIRCHILD
データシート
Avalanche Energy Rating (Eas)	1800 mJ
Configuration	SINGLE WITH BUILT-IN DIODE
DS Breakdown Voltage-Min	600 V
Drain Current-Max (Abs) (ID)	47 A
Drain Current-Max (ID)	47 A
Drain-source On Resistance-Max	0.07 ohm
FET Technology	METAL-OXIDE SEMICONDUCTOR
JESD-30 Code	R-PSFM-T3
JESD-609 Code	e3
Number of Elements	1
Number of Terminals	3
Operating Mode	ENHANCEMENT MODE
Operating Temperature-Max	150 Cel
Package Body Material	PLASTIC/EPOXY
Package Shape	RECTANGULAR
Package Style	FLANGE MOUNT Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Polarity/Channel Type	N-CHANNEL
Power Dissipation-Max (Abs)	417 W
Pulsed Drain Current-Max (IDM)	141 A
Qualification Status	Not Qualified
Sub Category	FET General Purpose Power
Surface Mount	NO
Terminal Finish	MATTE TIN
Terminal Form	THROUGH-HOLE
Terminal Position	SINGLE
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Transistor Application	SWITCHING
Transistor Element Material	SILICON

会社名称	Fairchild Semiconductor Corporation
設立	1957
所在地	3030 Orchard Parkway San Jose, CA 95134 United States
URL	http://www.fairchildsemi.com/
