FAN7601G の詳細情報

  • 仕様・詳細
  • メーカー情報

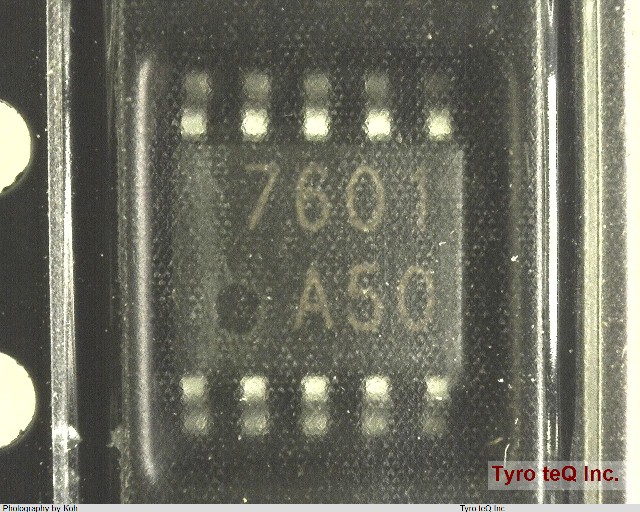

型番FAN7601G
メーカーFAIRCHILD
データシートProduct_list_pdf
Analog IC - Other Type SWITCHING CONTROLLER
Control Mode CURRENT-MODE
Control Technique PULSE WIDTH MODULATION
Input Voltage-Max 18 V
Input Voltage-Min 9 V
Input Voltage-Nom 14 V
JESD-30 Code R-PDSO-G10
JESD-609 Code e3
Length 4.92 mm
Moisture Sensitivity Level 1
Number of Functions 1
Number of Terminals 10
Operating Temperature-Max 125 Cel
Operating Temperature-Min -25 Cel
Output Current-Max 0.25 A
Package Body Material PLASTIC/EPOXY
Package Code SOP
Package Equivalence Code SOP10,.25,40
Package Shape RECTANGULAR
Package Style SMALL OUTLINE Meter
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
Seated Height-Max 1.8 mm
Sub Category Switching Regulator or Controllers
Surface Mount YES
Switcher Configuration SINGLE
Switching Frequency-Max 300 kHz
Technology BIPOLAR
Temperature Grade OTHER
Terminal Finish MATTE TIN
Terminal Form GULL WING
Terminal Pitch 1 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 30
Width 3.95 mm
