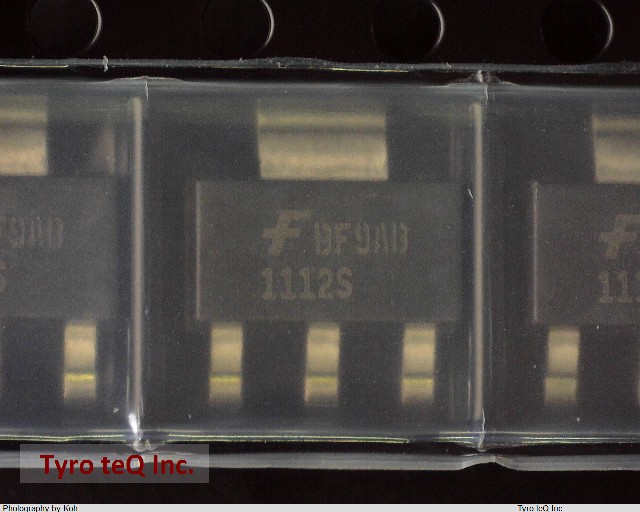

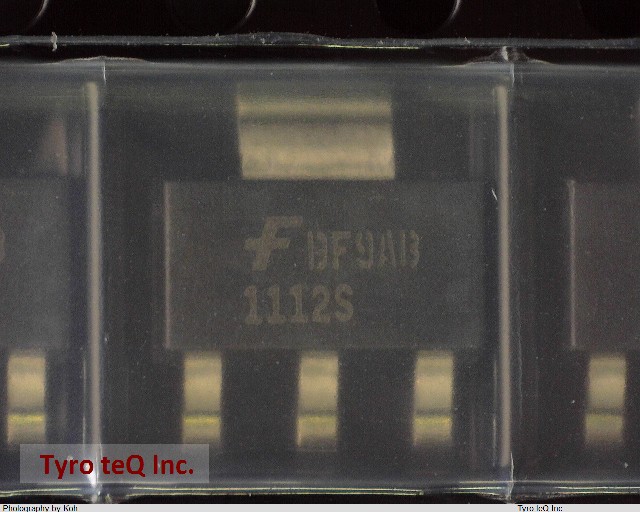

FAN1112SX

Name: FAN1112SX
Brand: FAIRCHILD
SKU: 160001240-0000-0000-0000

FAN1112SX - FAIRCHILD の商品詳細ページです。

２営業日以内に回答いたします

FAN1112SX の詳細情報

型番	FAN1112SX
メーカー	FAIRCHILD
Adjustability	FIXED
Dropout Voltage1-Max	1.2 V
Dropout Voltage1-Nom	1.1 V
Input Voltage Absolute-Max	18 V
Input Voltage-Max	12 V
Input Voltage-Min	3 V
JESD-30 Code	R-PDSO-G4
JESD-609 Code	e3
Length	6.505 mm
Line Regulation-Max	0.0024 %
Load Regulation-Max	0.006 %
Moisture Sensitivity Level	1
Number of Functions	1
Number of Outputs	1
Number of Terminals	4
Operating Temperature, TJ-Max	125 Cel
Operating Temperature, TJ-Min	0 Cel
Output Current1-Max	1 A
Output Voltage1-Max	1.26 V
Output Voltage1-Min	1.14 V
Output Voltage1-Nom	1.2 V
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOT-223
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Packing Method	TR
Peak Reflow Temperature (Cel)	260
Qualification Status	Not Qualified
Regulator Type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Seated Height-Max	1.8 mm
Sub Category	Other Regulators
Surface Mount	YES
Technology	BIPOLAR
Terminal Finish	MATTE TIN
Terminal Form	GULL WING
Terminal Pitch	2.3 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Voltage Tolerance-Max	5 %
Width	3.505 mm
