CD4093BCN データシート

CD4093BCN - FAIRCHILD の商品詳細ページです。

２営業日以内に回答いたします

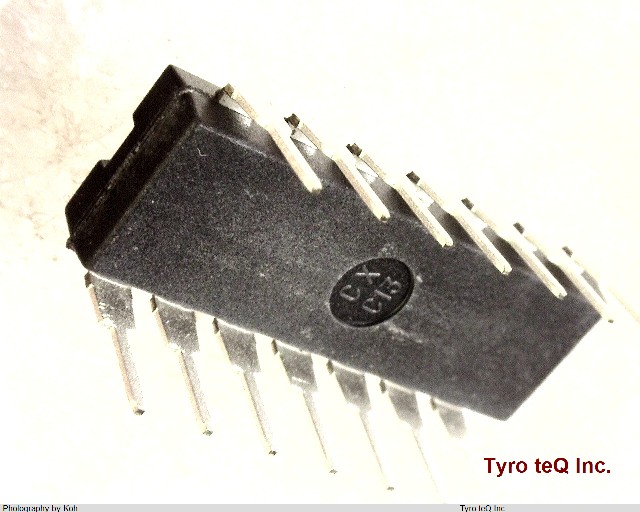

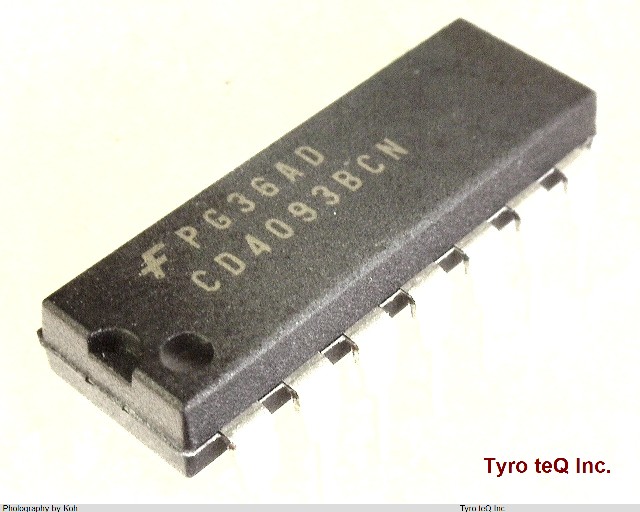

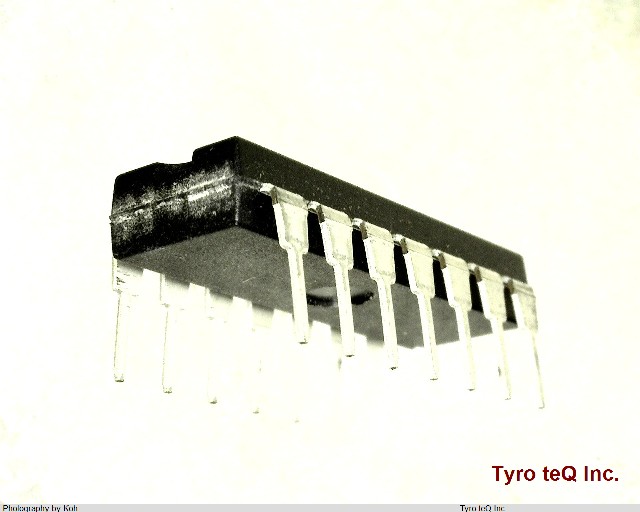

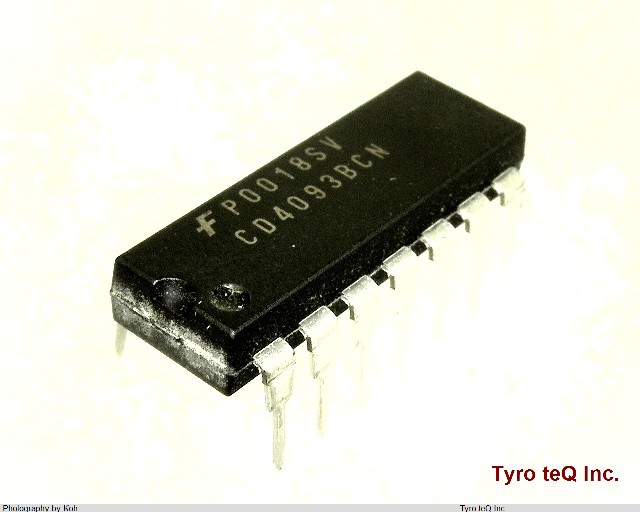

CMOS標準ロジックIC|4回路 2入力 NAND Schmitt Trigger | 14ピン|パッケージ： Plastic Dual-In-Line Package (PDIP), JEDEC MS-001, 0.300" Wide

CD4093BCN の詳細情報

型番	CD4093BCN
メーカー	FAIRCHILD
種別	CMOS標準ロジックIC
データシート
Family	4000/14000/40000
JESD-30 Code	R-PDIP-T14
JESD-609 Code	e0
Length	19.18 mm
Load Capacitance (CL)	50 pF
Logic IC Type	NAND GATE
Max I(ol)	0.00036 Amp
Number of Functions	4
Number of Inputs	2
Number of Terminals	14
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-55 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP14,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Power Supplies	5/15 V
Prop. Delay@Nom-Sup	450 ns
Propagation Delay (tpd)	450 ns
Qualification Status	Not Qualified
Schmitt Trigger	YES
Seated Height-Max	5.08 mm
Sub Category	Gates
Supply Voltage-Max (Vsup)	15 V
Supply Voltage-Min (Vsup)	3 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	NO
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	MATTE TIN
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	6.35 mm
