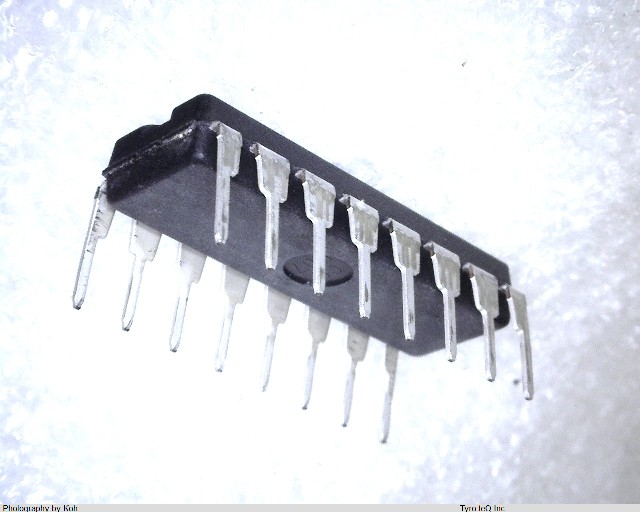

CD4052BCNNL

CD4052BCNNL - FAIRCHILD の商品詳細ページです。

No Image

２営業日以内に回答いたします

CMOS標準ロジックIC|2回路4chアナログ・マルチプレクサ/デマルチプレクサ（アナログスイッチ） | 16ピン|パッケージ： Plastic Dual-In-Line Package (PDIP), JEDEC MS-001, 0.300" Wide

CD4052BCNNL の詳細情報

型番	CD4052BCNNL
メーカー	FAIRCHILD
種別	CMOS標準ロジックIC
Analog IC - Other Type	DIFFERENTIAL MULTIPLEXER
JESD-30 Code	R-PDIP-T16
JESD-609 Code	e3
Length	19.305 mm
Neg Supply Voltage-Max (Vsup)	0 V
Neg Supply Voltage-Min (Vsup)	0 V
Neg Supply Voltage-Nom (Vsup)	0 V
Number of Channels	4
Number of Functions	1
Number of Terminals	16
On-state Resistance Match-Nom	10 ohm
On-state Resistance-Max (Ron)	1050 ohm
Operating Temperature-Max	125 Cel
Operating Temperature-Min	-55 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP16,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Power Supplies	5/15 V
Qualification Status	Not Qualified
Seated Height-Max	5.08 mm
Sub Category	Multiplexer or Switches
Supply Voltage-Max (Vsup)	15 V
Supply Voltage-Min (Vsup)	5 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	NO
Switch-off Time-Max	420 ns
Switch-on Time-Max	1200 ns
Switching	BREAK-BEFORE-MAKE V
Technology	CMOS
Temperature Grade	MILITARY
Terminal Finish	MATTE TIN
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Width	7.62 mm
