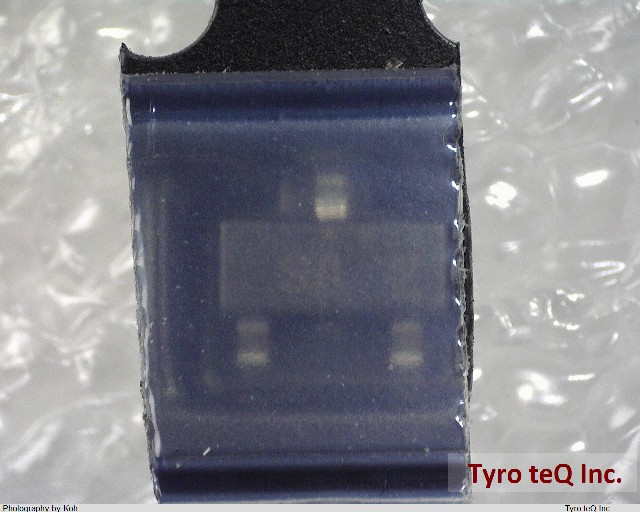

BSS123
1
-
- 個
２営業日以内に回答いたします
BSS123 の詳細情報
- 仕様・詳細
- メーカー情報
| 型番 | BSS123 |
|---|---|
| メーカー | FAIRCHILD |
| Additional Feature | AVALANCHE RATED |
| Configuration | SEPARATE, 2 ELEMENTS WITH BUILT-IN DIODE |
| DS Breakdown Voltage-Min | 100 V |
| Drain Current-Max (Abs) (ID) | 0.17 A |
| Drain Current-Max (ID) | 0.15 A |
| Drain-source On Resistance-Max | 3.6 ohm |
| FET Technology | METAL-OXIDE SEMICONDUCTOR |
| Feedback Cap-Max (Crss) | 1 pF |
| JEDEC-95 Code | TO-236 |
| JESD-30 Code | R-PDSO-F6 |
| JESD-609 Code | e0 |
| Moisture Sensitivity Level | 1 |
| Number of Elements | 1 |
| Number of Terminals | 3 |
| Operating Mode | ENHANCEMENT MODE |
| Operating Temperature-Max | 125 Cel |
| Operating Temperature-Min | -55 Cel |
| Package Body Material | PLASTIC/EPOXY |
| Package Shape | RECTANGULAR |
| Package Style | SMALL OUTLINE Meter |
| Peak Reflow Temperature (Cel) | 235 |
| Polarity/Channel Type | N-CHANNEL |
| Power Dissipation Ambient-Max | 0.2 W |
| Power Dissipation-Max (Abs) | 0.2 W |
| Qualification Status | Not Qualified |
| Reference Standard | AEC-Q101 |
| Sub Category | FET General Purpose Power |
| Surface Mount | YES |
| Terminal Finish | MATTE TIN |
| Terminal Form | FLAT |
| Terminal Position | DUAL |
| Time@Peak Reflow Temperature-Max (s) | 10 |
| Transistor Application | SWITCHING |
| Transistor Element Material | SILICON |
| 会社名称 | Fairchild Semiconductor Corporation |
|---|---|
| 設立 | 1957 |
| 所在地 | 3030 Orchard Parkway San Jose, CA 95134 United States |
| URL | http://www.fairchildsemi.com/ |
