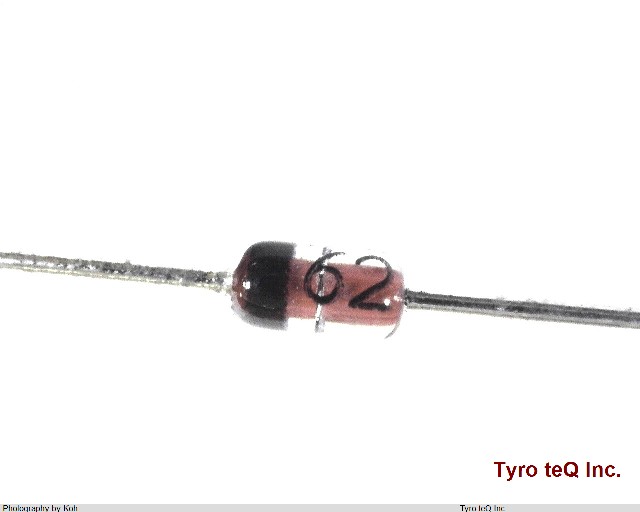

BAW62
1
-
- 個
２営業日以内に回答いたします
BAW62 の詳細情報
- 仕様・詳細
- メーカー情報
| 型番 | BAW62 |
|---|---|
| メーカー | FAIRCHILD |
| Additional Feature | HIGH SPEED SWITCH |
| Application | GENERAL PURPOSE |
| Case Connection | ISOLATED |
| Configuration | SINGLE |
| Diode Element Material | SILICON |
| Diode Type | RECTIFIER DIODE |
| Forward Voltage-Max (VF) | 0.75 V |
| JEDEC-95 Code | DO-35 |
| JESD-30 Code | O-LALF-W2 |
| JESD-609 Code | e0 |
| Moisture Sensitivity Level | 1 |
| Non-rep Pk Forward Current-Max | 0.5 A |
| Number of Elements | 1 |
| Number of Phases | 1 |
| Number of Terminals | 2 |
| Operating Temperature-Max | 175 Cel |
| Output Current-Max | 0.15 A |
| Package Body Material | GLASS |
| Package Shape | ROUND |
| Package Style | LONG FORM Meter |
| Peak Reflow Temperature (Cel) | 260 |
| Power Dissipation-Max | 0.35 W |
| Qualification Status | Not Qualified |
| Reference Standard | CECC50001-021 |
| Rep Pk Reverse Voltage-Max | 75 V |
| Reverse Current-Max | 5 uA |
| Reverse Recovery Time-Max | 0.004 us |
| Reverse Test Voltage | 75 V |
| Sub Category | Rectifier Diodes |
| Surface Mount | NO |
| Technology | AVALANCHE |
| Terminal Finish | MATTE TIN |
| Terminal Form | WIRE |
| Terminal Position | AXIAL |
| Time@Peak Reflow Temperature-Max (s) | 30 |
| 会社名称 | Fairchild Semiconductor Corporation |
|---|---|
| 設立 | 1957 |
| 所在地 | 3030 Orchard Parkway San Jose, CA 95134 United States |
| URL | http://www.fairchildsemi.com/ |
