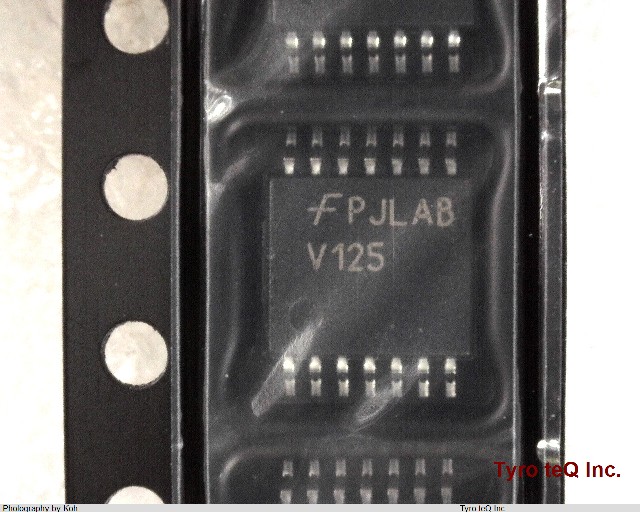

74VHC125MTCX
1
-
- 個
２営業日以内に回答いたします
74VHC125MTCX の詳細情報
- 仕様・詳細
- メーカー情報
| 型番 | 74VHC125MTCX |
|---|---|
| メーカー | FAIRCHILD |
| 種別 | CMOS標準ロジックIC |
| Control Type | ENABLE LOW |
| Family | AHC/VHC |
| JESD-30 Code | R-PDSO-G14 |
| JESD-609 Code | e3 |
| Length | 5 mm |
| Load Capacitance (CL) | 50 pF |
| Logic IC Type | BUS DRIVER |
| Max I(ol) | 0.008 Amp |
| Moisture Sensitivity Level | 1 |
| Number of Bits | 1 |
| Number of Functions | 4 |
| Number of Ports | 2 |
| Number of Terminals | 14 |
| Operating Temperature-Max | 85 Cel |
| Operating Temperature-Min | -40 Cel |
| Output Characteristics | 3-STATE |
| Output Polarity | TRUE |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | TSSOP |
| Package Equivalence Code | TSSOP14,.25 |
| Package Shape | RECTANGULAR |
| Package Style | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH Meter |
| Packing Method | TR |
| Peak Reflow Temperature (Cel) | 260 |
| Power Supplies | 2/5.5 V |
| Prop. Delay@Nom-Sup | 8.5 ns |
| Propagation Delay (tpd) | 8.5 ns |
| Qualification Status | Not Qualified |
| Seated Height-Max | 1.1 mm |
| Sub Category | Bus Driver/Transceivers |
| Supply Voltage-Max (Vsup) | 5.5 V |
| Supply Voltage-Min (Vsup) | 2 V |
| Supply Voltage-Nom (Vsup) | 3.3 V |
| Surface Mount | YES |
| Technology | CMOS |
| Temperature Grade | INDUSTRIAL |
| Terminal Finish | MATTE TIN |
| Terminal Form | GULL WING |
| Terminal Pitch | 0.65 mm |
| Terminal Position | DUAL |
| Time@Peak Reflow Temperature-Max (s) | 30 |
| Width | 4.4 mm |
| 会社名称 | Fairchild Semiconductor Corporation |
|---|---|
| 設立 | 1957 |
| 所在地 | 3030 Orchard Parkway San Jose, CA 95134 United States |
| URL | http://www.fairchildsemi.com/ |
