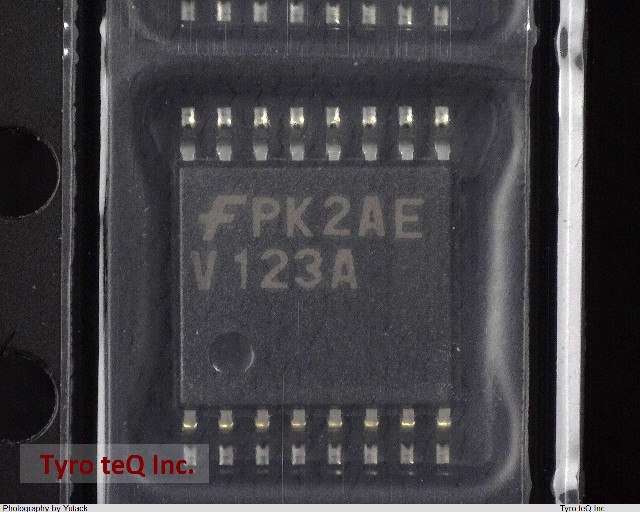

74VHC123AMTCX データシート

Name: 74VHC123AMTCX
Brand: FAIRCHILD
SKU: 80005332-0000-0000-0000

74VHC123AMTCX - FAIRCHILD の商品詳細ページです。

２営業日以内に回答いたします

CMOS標準ロジックIC

74VHC123AMTCX の詳細情報

型番	74VHC123AMTCX
メーカー	FAIRCHILD
種別	CMOS標準ロジックIC
データシート
Additional Feature	RETRIGGERABLE
Family	AHC/VHC
JESD-30 Code	R-PDSO-G16
JESD-609 Code	e3
Length	5 mm
Load Capacitance (CL)	50 pF
Logic IC Type	MONOSTABLE MULTIVIBRATOR
Moisture Sensitivity Level	1
Number of Data/Clock Inputs	2
Number of Functions	2
Number of Terminals	16
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output Polarity	COMPLEMENTARY
Package Body Material	PLASTIC/EPOXY
Package Code	TSSOP
Package Equivalence Code	TSSOP16,.25
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH Meter
Peak Reflow Temperature (Cel)	260
Power Supplies	2/5.5 V
Propagation Delay (tpd)	27.5 ns
Qualification Status	Not Qualified
Seated Height-Max	1.1 mm
Sub Category	Prescaler/Multivibrators
Supply Voltage-Max (Vsup)	5.5 V
Supply Voltage-Min (Vsup)	2 V
Supply Voltage-Nom (Vsup)	2 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	MATTE TIN
Terminal Form	GULL WING
Terminal Pitch	0.635 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Width	4.4 mm
