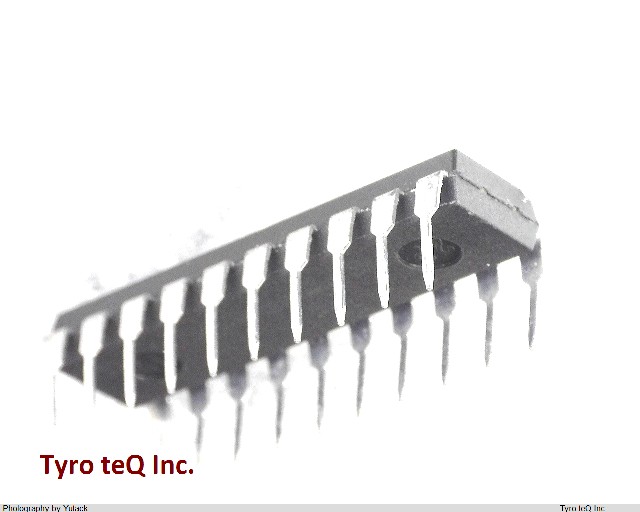

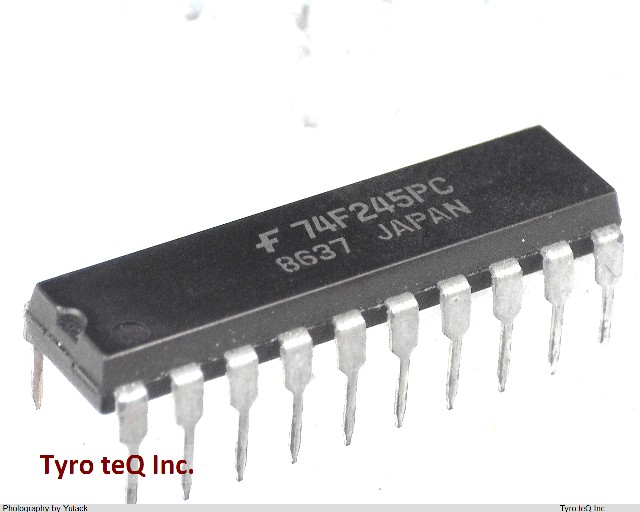

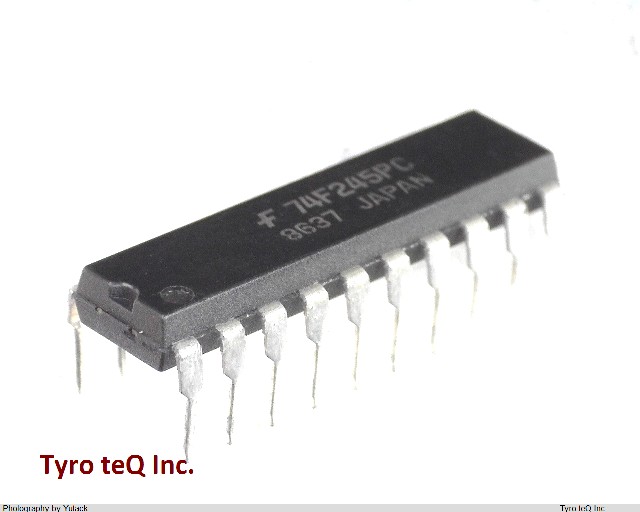

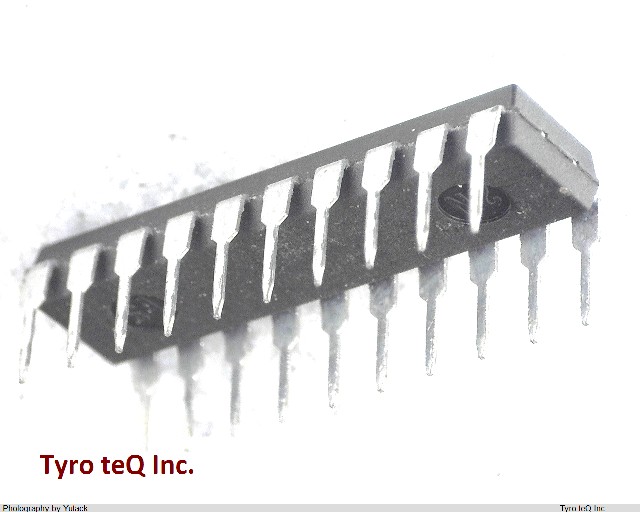

74F245PC
データシート
1
-
- 個
２営業日以内に回答いたします
FAST TTL トランジスタ・トランジスタ・ロジック|パッケージ： Plastic Dual-In-Line Package (PDIP), JEDEC MS-001, 0.300 Wide | Lead free
74F245PC の詳細情報
- 仕様・詳細
- メーカー情報
| 型番 | 74F245PC |
|---|---|
| メーカー | FAIRCHILD |
| 種別 | FAST TTL |
| データシート |  |
| Additional Feature | WITH DIRECTION CONTROL |
| Control Type | COMMON CONTROL |
| Count Direction | BIDIRECTIONAL |
| Family | F/FAST |
| JESD-30 Code | R-PDIP-T20 |
| JESD-609 Code | e0 |
| Length | 24.895 mm |
| Load Capacitance (CL) | 50 pF |
| Logic IC Type | BUS TRANSCEIVER |
| Max I(ol) | 0.064 Amp |
| Moisture Sensitivity Level | 2A |
| Number of Bits | 8 |
| Number of Functions | 1 |
| Number of Ports | 2 |
| Number of Terminals | 20 |
| Operating Temperature-Max | 70 Cel |
| Operating Temperature-Min | 0 Cel |
| Output Characteristics | 3-STATE |
| Output Polarity | TRUE |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | DIP |
| Package Equivalence Code | DIP20,.3 |
| Package Shape | RECTANGULAR |
| Package Style | IN-LINE Meter |
| Packing Method | RAIL |
| Power Supplies | 5 V |
| Power Supply Current-Max (ICC) | 120 mA |
| Prop. Delay@Nom-Sup | 7 ns |
| Propagation Delay (tpd) | 7 ns |
| Qualification Status | Not Qualified |
| Seated Height-Max | 5.08 mm |
| Sub Category | Bus Driver/Transceivers |
| Supply Voltage-Max (Vsup) | 5.25 V |
| Supply Voltage-Min (Vsup) | 4.5 V |
| Supply Voltage-Nom (Vsup) | 5 V |
| Surface Mount | NO |
| Technology | TTL |
| Temperature Grade | COMMERCIAL |
| Terminal Finish | MATTE TIN |
| Terminal Form | THROUGH-HOLE |
| Terminal Pitch | 2.54 mm |
| Terminal Position | DUAL |
| Translation | N/A |
| Width | 7.62 mm |
| 会社名称 | Fairchild Semiconductor Corporation |
|---|---|
| 設立 | 1957 |
| 所在地 | 3030 Orchard Parkway San Jose, CA 95134 United States |
| URL | http://www.fairchildsemi.com/ |
