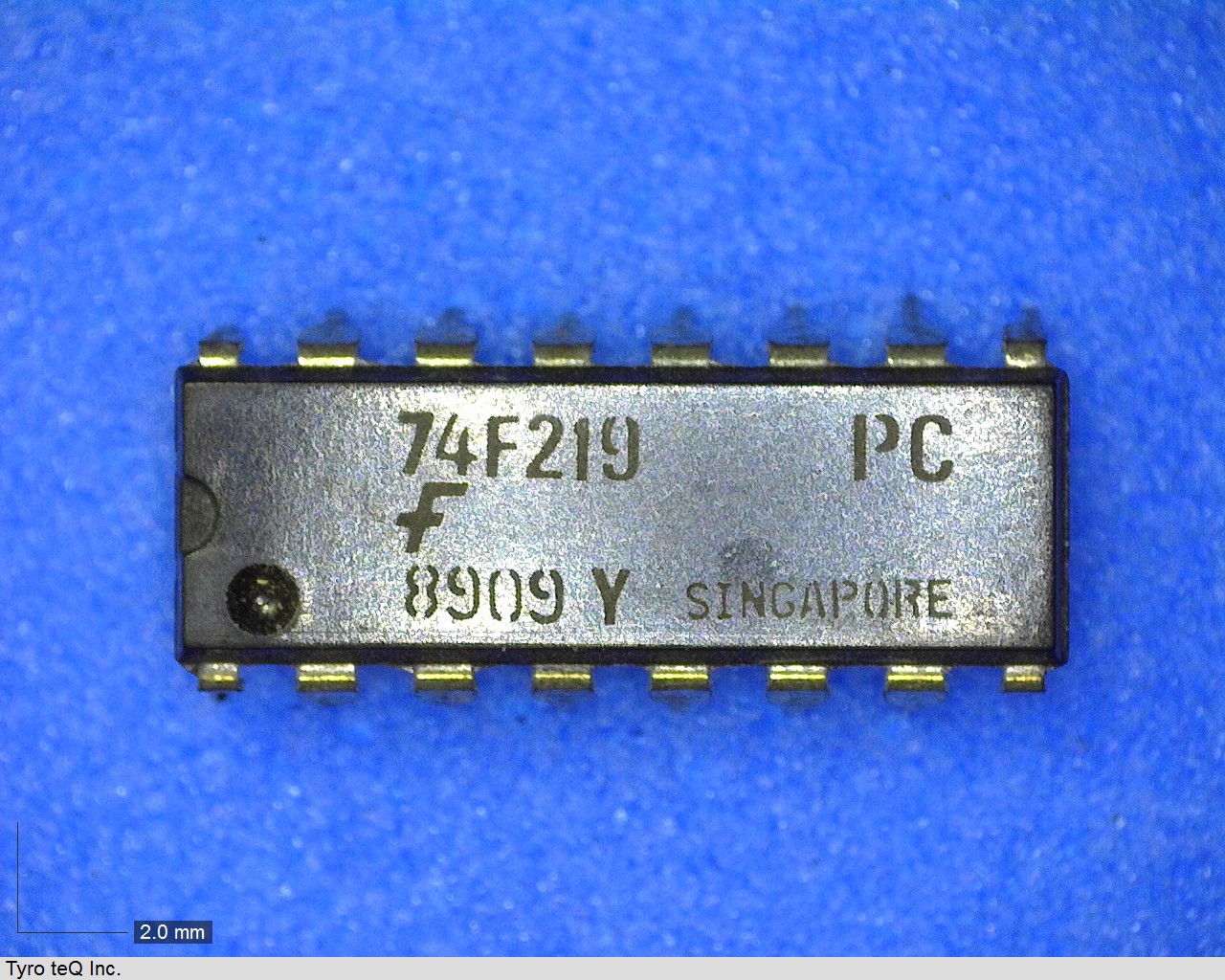

74F219PC データシート

Name: 74F219PC
Brand: FAIRCHILD
SKU: 80052616-0000-0000-0000

74F219PC - FAIRCHILD の商品詳細ページです。

２営業日以内に回答いたします

FAST TTL　トランジスタ・トランジスタ・ロジック|パッケージ： Plastic Dual-In-Line Package (PDIP), JEDEC MS-001, 0.300 Wide | Lead free

74F219PC の詳細情報

型番	74F219PC
メーカー	FAIRCHILD
種別	FAST TTL
データシート
Access Time-Max	20 ns
JESD-30 Code	R-PDIP-T16
JESD-609 Code	e0
Length	19.18 mm
Memory Density	64 bit
Memory IC Type	STANDARD SRAM
Memory Width	4
Moisture Sensitivity Level	2A
Number of Functions	1
Number of Ports	1
Number of Terminals	16
Number of Words	16 words
Number of Words Code	16
Operating Mode	ASYNCHRONOUS
Operating Temperature-Max	70 Cel
Operating Temperature-Min	-40 Cel
Organization	16X4
Output Characteristics	3-STATE
Output Enable	NO
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP16,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Parallel/Serial	PARALLEL
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Power Supplies	5 V
Qualification Status	Not Qualified
Seated Height-Max	5.08 mm
Sub Category	SRAMs
Supply Current-Max	0.055 mA
Supply Voltage-Max (Vsup)	5.25 V
Supply Voltage-Min (Vsup)	4.5 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	NO
Technology	CMOS
Temperature Grade	COMMERCIAL
Terminal Finish	TIN LEAD
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	7.62 mm
