74F169PC データシート Fairchild

74F169PC - FAIRCHILD の商品詳細ページです。

1

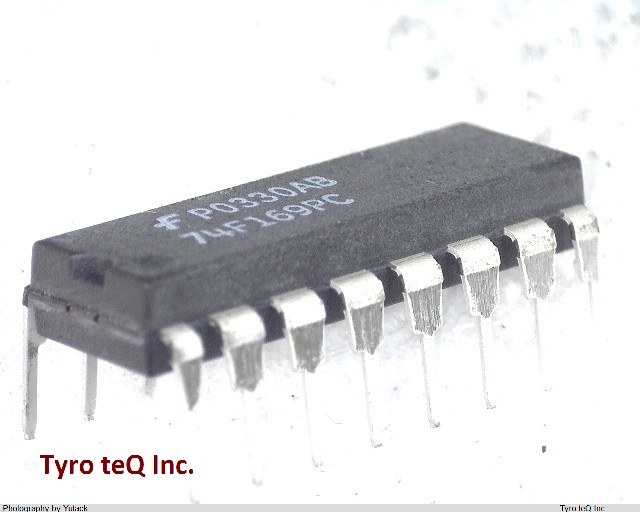

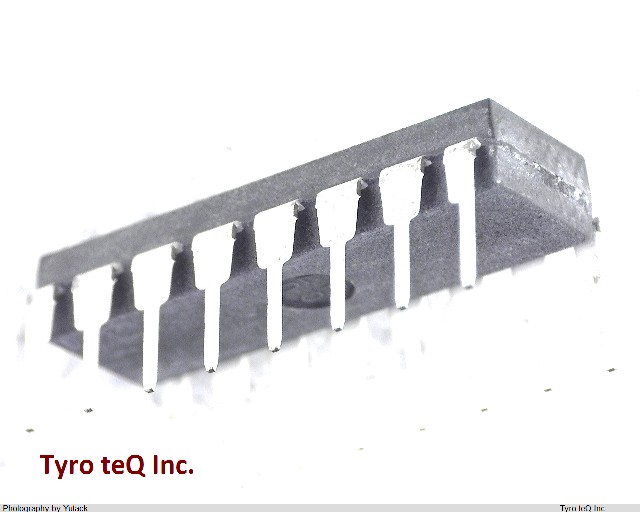

74F169PC
  • 74F169PC
  • 74F169PC
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • 個
２営業日以内に回答いたします
この商品のお問い合わせ

FAST TTL　トランジスタ・トランジスタ・ロジック|パッケージ： Plastic Dual-In-Line Package (PDIP), JEDEC MS-001, 0.300 Wide | Lead free

74F169PC の詳細情報

  • 仕様・詳細
  • メーカー情報
型番74F169PC
メーカーFAIRCHILD
種別FAST TTL
データシートProduct_list_pdf
Additional Feature TCO OUTPUT
Count Direction BIDIRECTIONAL
Family F/FAST
JESD-30 Code R-PDIP-T16
JESD-609 Code e0
Length 19.18 mm
Load Capacitance (CL) 50 pF
Load/Preset Input YES
Logic IC Type BINARY COUNTER
Max Frequency@Nom-Sup 70000000 Hz
Max I(ol) 0.02 Amp
Mode of Operation SYNCHRONOUS
Moisture Sensitivity Level 2A
Number of Bits 4
Number of Functions 1
Number of Terminals 16
Operating Temperature-Max 70 Cel
Operating Temperature-Min 0 Cel
Package Body Material PLASTIC/EPOXY
Package Code DIP
Package Equivalence Code DIP16,.3
Package Shape RECTANGULAR
Package Style IN-LINE Meter
Power Supplies 5 V
Power Supply Current-Max (ICC) 52 mA
Propagation Delay (tpd) 13 ns
Qualification Status Not Qualified
Seated Height-Max 5.08 mm
Sub Category Counters
Supply Voltage-Max (Vsup) 5.25 V
Supply Voltage-Min (Vsup) 4.5 V
Supply Voltage-Nom (Vsup) 5 V
Surface Mount NO
Technology TTL
Temperature Grade COMMERCIAL
Terminal Finish MATTE TIN
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
Trigger Type POSITIVE EDGE
Width 7.62 mm
fmax-Min 70 MHz
会社名称Fairchild Semiconductor Corporation
設立1957
所在地3030 Orchard Parkway San Jose, CA 95134 United States
URLhttp://www.fairchildsemi.com/
