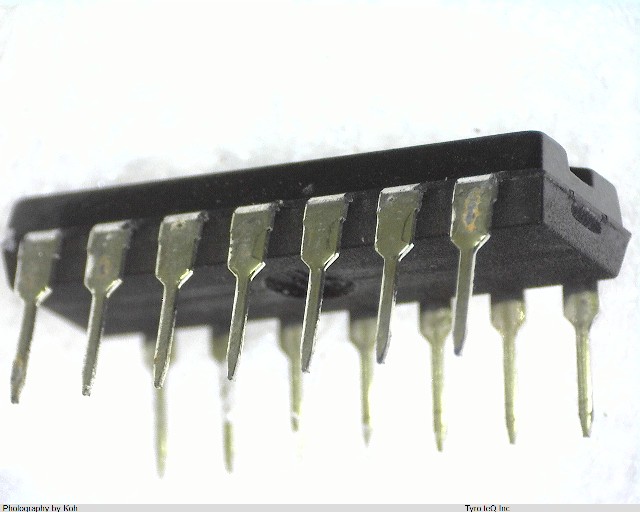

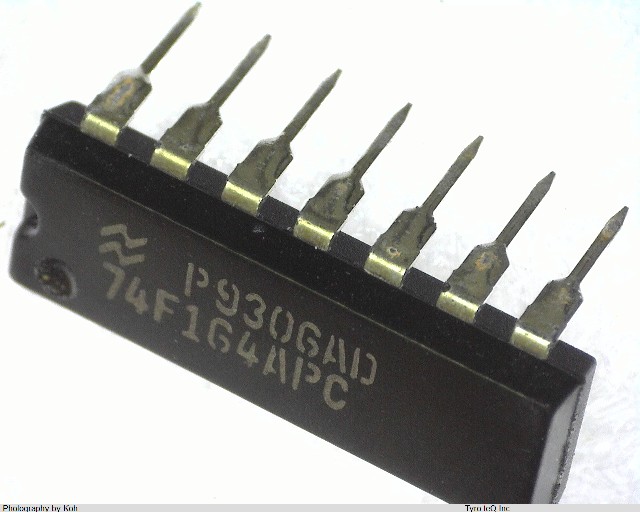

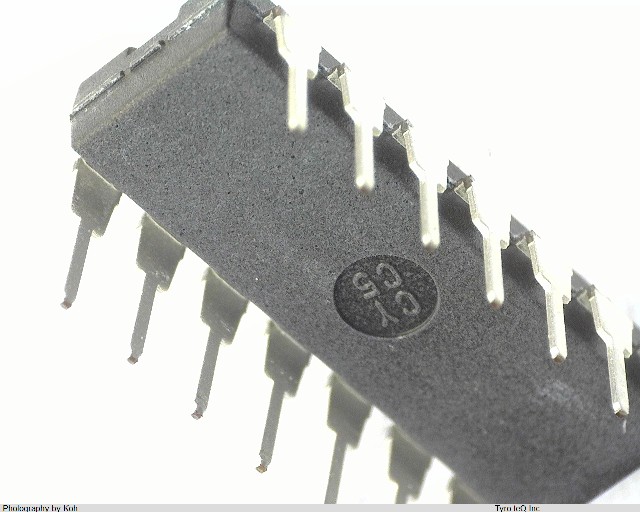

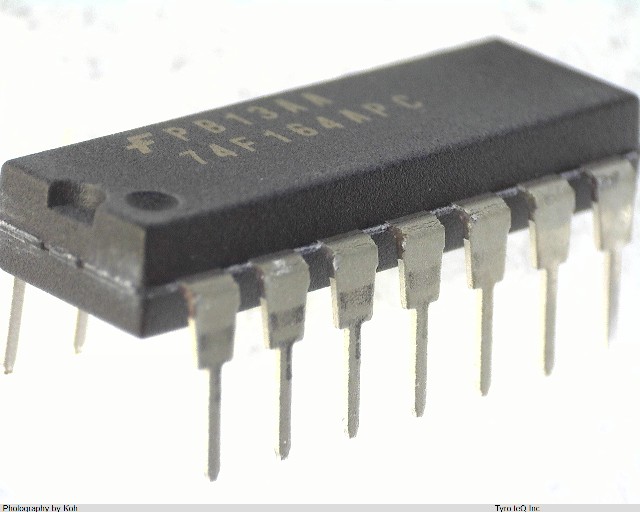

74F164APC データシート

Name: 74F164APC
Brand: FAIRCHILD
SKU: 80000041-0000-0000-0000

74F164APC - FAIRCHILD の商品詳細ページです。

２営業日以内に回答いたします

FAST TTL　トランジスタ・トランジスタ・ロジック|パッケージ： Plastic Dual-In-Line Package (PDIP), JEDEC MS-001, 0.300 Wide | Lead free

74F164APC の詳細情報

型番	74F164APC
メーカー	FAIRCHILD
種別	FAST TTL
データシート
Count Direction	RIGHT
Family	F/FAST
JESD-30 Code	R-PDIP-T14
JESD-609 Code	e0
Length	19.18 mm
Load Capacitance (CL)	50 pF
Logic IC Type	SERIAL IN PARALLEL OUT
Max Frequency@Nom-Sup	80000000 Hz
Number of Bits	8
Number of Functions	1
Number of Terminals	14
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Output Polarity	TRUE
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP14,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Power Supplies	5 V
Power Supply Current-Max (ICC)	55 mA
Propagation Delay (tpd)	8 ns
Qualification Status	Not Qualified
Seated Height-Max	5.08 mm
Sub Category	Shift Registers
Supply Voltage-Max (Vsup)	5.5 V
Supply Voltage-Min (Vsup)	4.5 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	NO
Technology	TTL
Temperature Grade	COMMERCIAL
Terminal Finish	MATTE TIN
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Trigger Type	POSITIVE EDGE
Width	7.62 mm
fmax-Min	80 MHz
