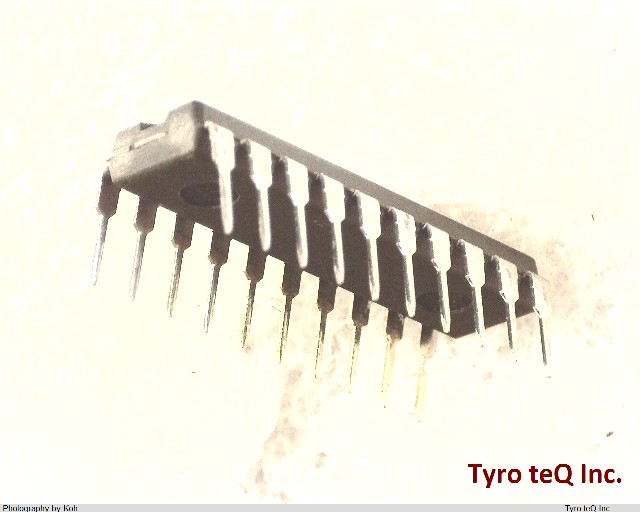

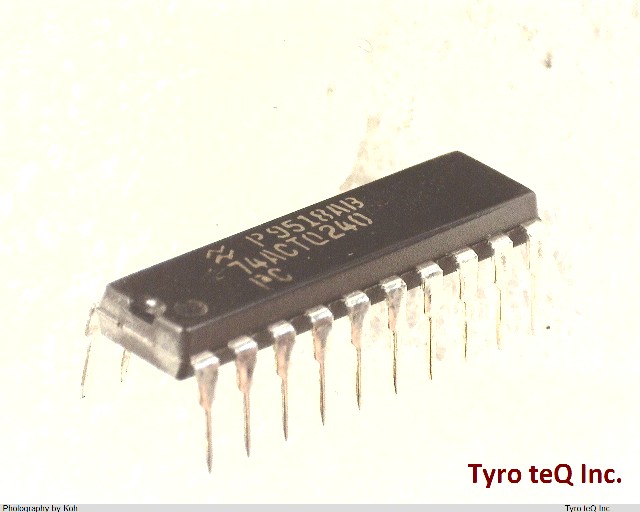

74ACTQ240PC データシート

Name: 74ACTQ240PC
Brand: FAIRCHILD
SKU: 80002412-0000-0000-0000

74ACTQ240PC - FAIRCHILD の商品詳細ページです。

２営業日以内に回答いたします

Advanced CMOSロジックIC|パッケージ： Plastic Dual-In-Line Package (PDIP), JEDEC MS-001, 0.300 Wide | Lead free

74ACTQ240PC の詳細情報

型番	74ACTQ240PC
メーカー	FAIRCHILD
種別	Advanced CMOSロジックIC
データシート
Additional Feature	MAX VOLP = 1.5V AT VCC = 5V, TA = 25 DEGREE C; MAX OUTPUT SKEW = 1000PS
Control Type	ENABLE LOW
Family	ACT
JESD-30 Code	R-PDIP-T20
JESD-609 Code	e0
Length	8.89 mm
Load Capacitance (CL)	50 pF
Logic IC Type	BUS DRIVER
Max I(ol)	0.024 Amp
Number of Bits	4
Number of Functions	2
Number of Ports	2
Number of Terminals	20
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output Characteristics	3-STATE
Output Polarity	INVERTED
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP20,.3
Package Shape	RECTANGULAR
Package Style	CHIP CARRIER Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Power Supplies	5 V
Prop. Delay@Nom-Sup	7.5 ns
Propagation Delay (tpd)	7.5 ns
Qualification Status	Not Qualified
Seated Height-Max	4.57 mm
Sub Category	Bus Driver/Transceivers
Supply Voltage-Max (Vsup)	5.5 V
Supply Voltage-Min (Vsup)	4.5 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	NO
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	Tin/Lead (Sn/Pb)
Terminal Form	J BEND
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	7.62 mm
