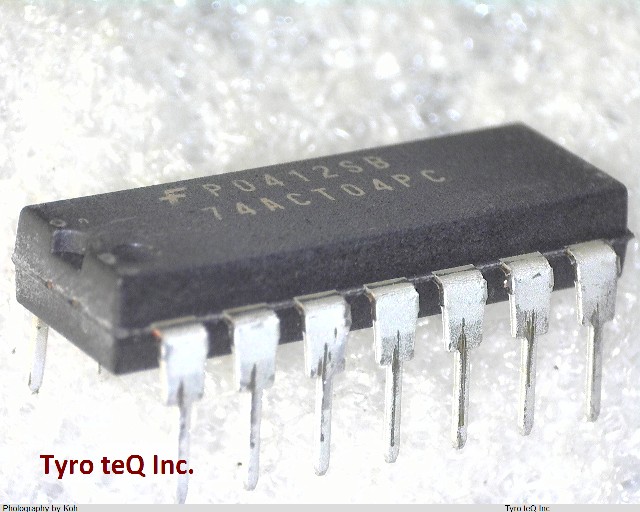

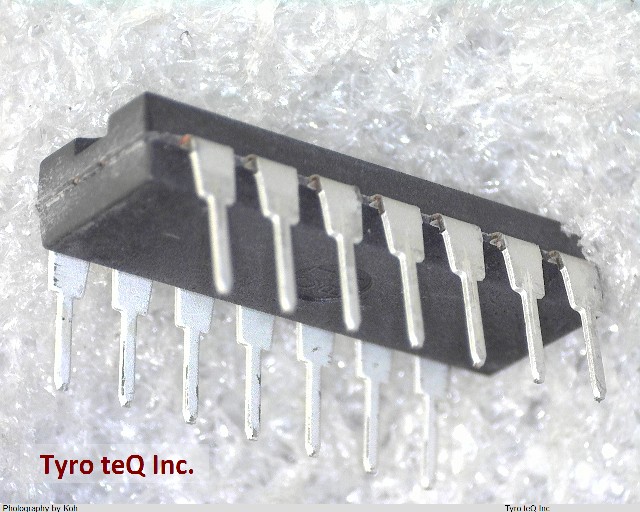

74ACT04PC データシート

Name: 74ACT04PC
Brand: FAIRCHILD
SKU: 80006931-0000-0000-0000

74ACT04PC - FAIRCHILD の商品詳細ページです。

２営業日以内に回答いたします

Advanced CMOSロジックIC|パッケージ： Plastic Dual-In-Line Package (PDIP), JEDEC MS-001, 0.300 Wide | Lead free

74ACT04PC の詳細情報

型番	74ACT04PC
メーカー	FAIRCHILD
種別	Advanced CMOSロジックIC
データシート
Family	ACT
JESD-30 Code	R-PDIP-T14
JESD-609 Code	e0
Length	19.05 mm
Load Capacitance (CL)	50 pF
Logic IC Type	INVERTER
Max I(ol)	0.024 Amp
Number of Functions	6
Number of Inputs	1
Number of Terminals	14
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP14,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Packing Method	TR
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Power Supplies	5 V
Power Supply Current-Max (ICC)	0.04 mA
Prop. Delay@Nom-Sup	9 ns
Propagation Delay (tpd)	8.5 ns
Qualification Status	Not Qualified
Schmitt Trigger	NO
Seated Height-Max	5.08 mm
Sub Category	Gates
Supply Voltage-Max (Vsup)	5.5 V
Supply Voltage-Min (Vsup)	2 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	NO
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	MATTE TIN
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	7.62 mm
