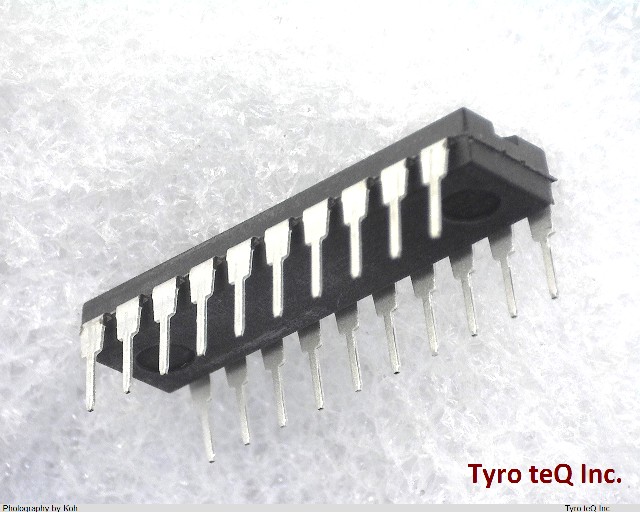

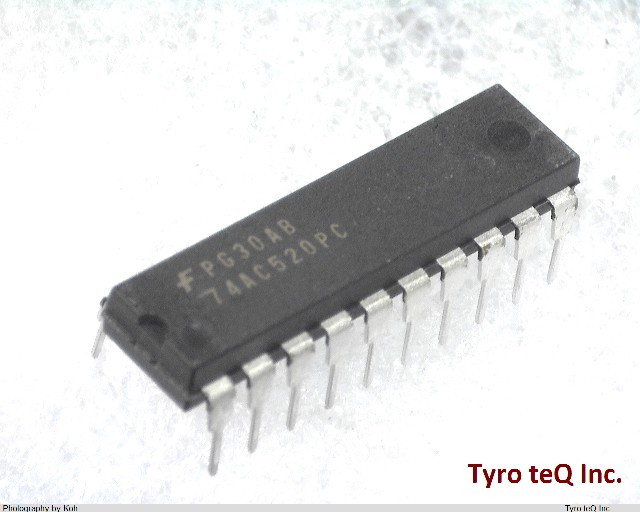

74AC520PC データシート

Name: 74AC520PC
Brand: FAIRCHILD
SKU: 80002100-0000-0000-0000

74AC520PC - FAIRCHILD の商品詳細ページです。

２営業日以内に回答いたします

Advanced CMOSロジックIC|パッケージ： Plastic Dual-In-Line Package (PDIP), JEDEC MS-001, 0.300 Wide | Lead free

74AC520PC の詳細情報

型番	74AC520PC
メーカー	FAIRCHILD
種別	Advanced CMOSロジックIC
データシート
Additional Feature	ALSO WORKS WITH 5V VCC
Family	AC
JESD-30 Code	R-PDIP-T20
JESD-609 Code	e0
Length	24.892 mm
Load Capacitance (CL)	50 pF
Logic IC Type	IDENTITY COMPARATOR
Number of Bits	8
Number of Functions	1
Number of Terminals	20
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output Polarity	INVERTED
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP20,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Power Supplies	3.3/5 V
Propagation Delay (tpd)	13.5 ns
Qualification Status	Not Qualified
Seated Height-Max	5.08 mm
Sub Category	Arithmetic Circuits
Supply Voltage-Max (Vsup)	3.6 V
Supply Voltage-Min (Vsup)	2 V
Supply Voltage-Nom (Vsup)	3 V
Surface Mount	NO
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	TIN LEAD
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	7.62 mm

会社名称	Fairchild Semiconductor Corporation
設立	1957
所在地	3030 Orchard Parkway San Jose, CA 95134 United States
URL	http://www.fairchildsemi.com/
